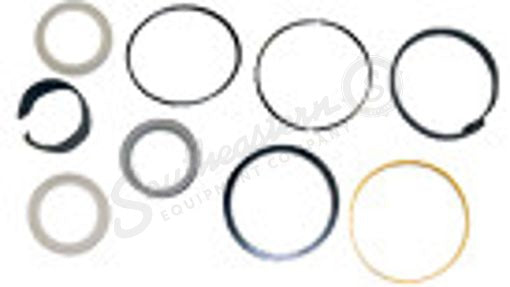

Seal Kit

Replaces OEM Part Numbers

1346429C1; 1542954C1; G110050

This Kit includes the following parts:
87565169NA INSTRUCTION x1
86977781 O-Ring x1
86631610 SEAL, WIPER,36.32mm ID x 50.95mm OD x 7.92mm Thk x1
G102288 SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk x1
G109298 RING,69.47mm ID x 75.57mm OD x 1.4mm Thk x1
G100444 Hydraulic Seal Kit x1
G102424 BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L x1
1542874C1 Hydraulic Cylinder x1
G100449 RING, WEAR,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk x1

Replaces: 1346429C1; G110050; 1542954C1; G109882

Compatible equipment

This part fits CASE UNI-LOADER SKID STEER LOADER, CASE UNI-LOADER SKID STEER LOADER (NORTH AMERICA), CASE SKID STEER LOADER, CASE LONG TRACK CRAWLER TRACTOR, CASE TRENCHER, LOADER LANDSCAPER, SERIES 3 LOADER LANDSCAPER TIER 3 - ASN N8C510600, LOADER LANDSCAPER - LIVERY - TIER 4B, LOADER LANDSCAPER - TIER 4B, LOADER LANDSCAPER - TIER 4A ASN NCC570600, LOADER BACKHOE (NORTH AMERICA), LOADER BACKHOE (NORTH AMERICA) (ASN JJG0020000), SERIES 2 LOADER BACKHOE - ASN JJG0239360, LOADER BACKHOE (NA) - ASN JJG0285001, SERIES 2 LOADER BACKHOE TIER 2 (NA) - ASN N4C303000, SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C500000, BACKHOE LOADER - TIER 4B, BACKHOE LOADER 2WD - TIER 4B - MY18, BACKHOE LOADER 4WD - TIER 4B - MY18, BACKHOE LOADER (LIVERY) - TIER 4B, BACKHOE LOADER 2WD - TIER 4B - MY19, BACKHOE LOADER 4WD - TIER 4B - MY19, CASE SUPER-K CONSTRUCTION KING LOADER BACKHOE, LOADER BACKHOE - BSN JJG0239361, SERIES 2 LOADER BACKHOE TIER 2 (NA) - ASN N4C304000, SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C5040000, SERIES 2 LOADER BACKHOE TIER 2 (NA) - ASN N4C307000, SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C508000, BACKHOE LOADER - WIDE TRACK - TIER 4B, BACKHOE LOADER 4WD - WIDE TRACK - TIER 4B - MY18, CASE FORKLIFT, SERIES 3 FORKLIFT TIER 3 - ASN N8C510000 (NA), FORKLIFT - LIVERY - TIER 4B, FORKLIFT - TIER 4A, FORKLIFT - TIER 4B, TURBO LOADER BACKHOE, LOADER BACKHOE, SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C508500, SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N7C431854, CASE CONSTRUCTION KING LOADER BACKHOE, CASE SKID STEER LOADER - ASN JAF0318922 (NA) JAF0352169 (EU), GRAIN DRYING BIN, CASE SKID STEER LOADER - ASN JAF0352234 (NA) JAF0352715 (EU), CASE SKID STEER LOADER - ASN JAF0320050 (NA) JAF0274262 (EU), CASE IH STEIGER 4WD TRACTOR (FROM S/N 17900650 TO JCB0003599), CASE IH STEIGER 4WD TRACTOR (PRIOR TO S/N 17900650), CASE IH STEIGER 4WD TRACTOR (S/N JCB0003600 & AFTER), CASE IH STEIGER 4WD TRACTOR (AFTER S/N 17900649), CASE SKID STEER LOADER - ASN JAF0311357 (NA) JAF0274360 (EU), TRACTOR LOADER - NA, TRACTOR LOADER TIER 3 (NA), TRACTOR LOADER - TIER 4A including models 1840, 1845C, 40XT, 550E, 550G, 560, 570LXT, 570MXT, 570N EP, 570NXT, 580K, 580L, 580M, 580N, 580N EP, 580SK, 580SL, 580SM, 580SN, 580SN WT, 585G, 586G, 586H, 588G, 588H.

Frequently asked questions

What is the part number?

The manufacturer part number is 1543256C1.

Is this a genuine OEM part?

Yes. Southeastern Equipment stocks OEM and quality aftermarket parts for heavy equipment. Contact us if you need a specific OEM source or aftermarket option.

Will this fit my machine?

See the compatible equipment list above. If your model is not listed, call us with your machine's serial number and we can confirm.

Where does this ship from?

Southeastern Equipment Company ships parts nationwide from our US warehouse. Orders placed before 2 PM ET typically ship same day.

Compatible Equipment

Fits: 1500-SERIES, 1816B, 40XT, 550E, 550G (+31 more)

Don't see your machine? Contact us.
