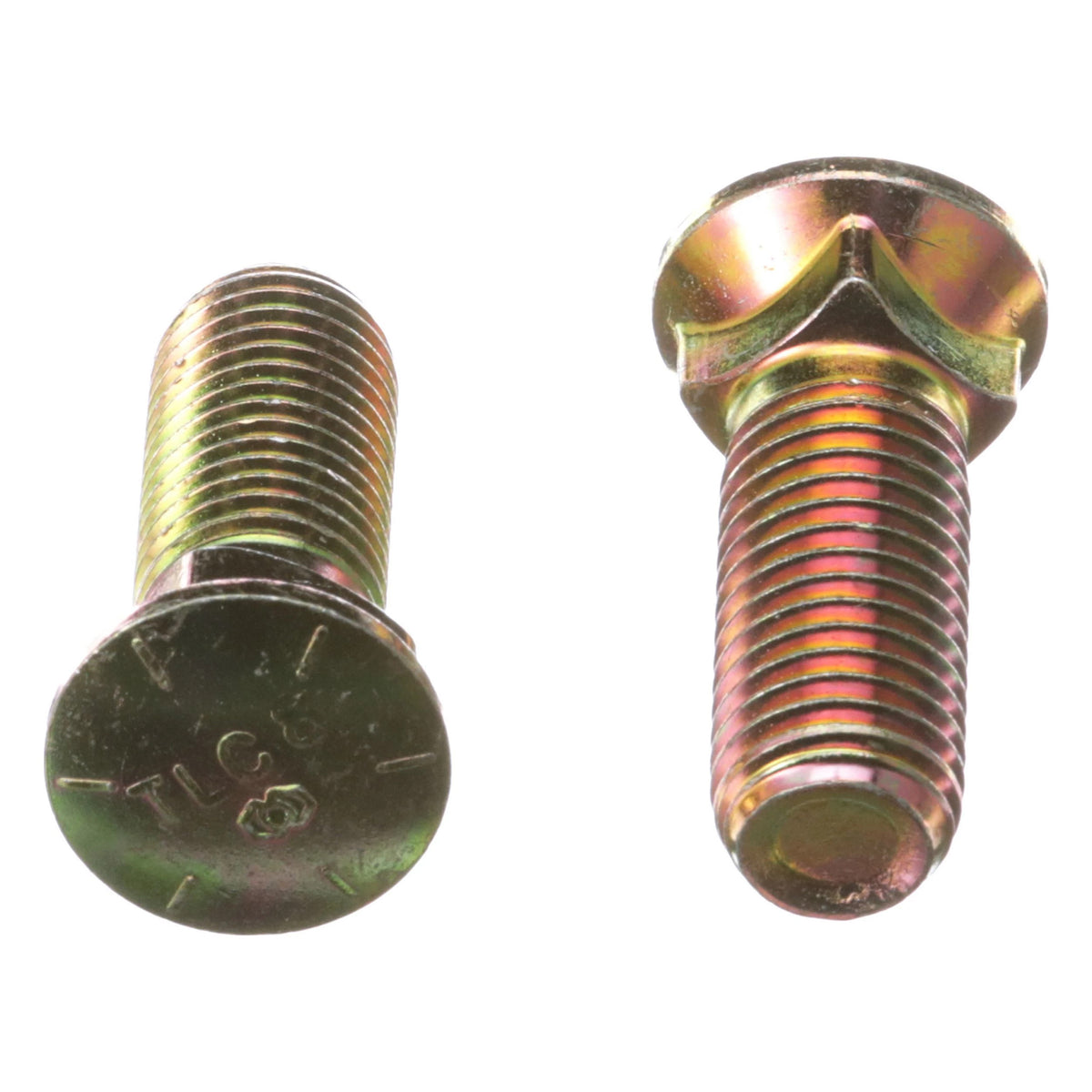

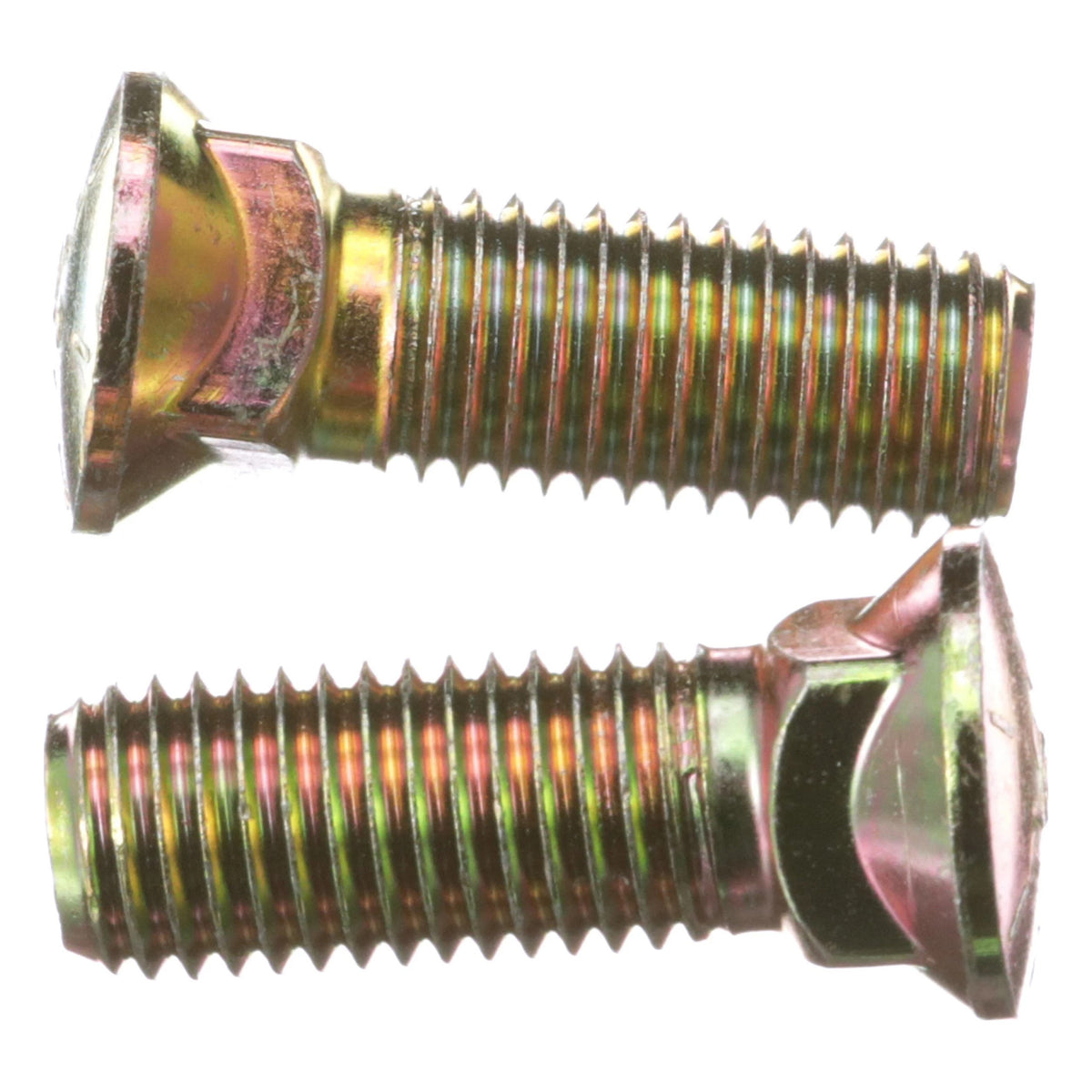

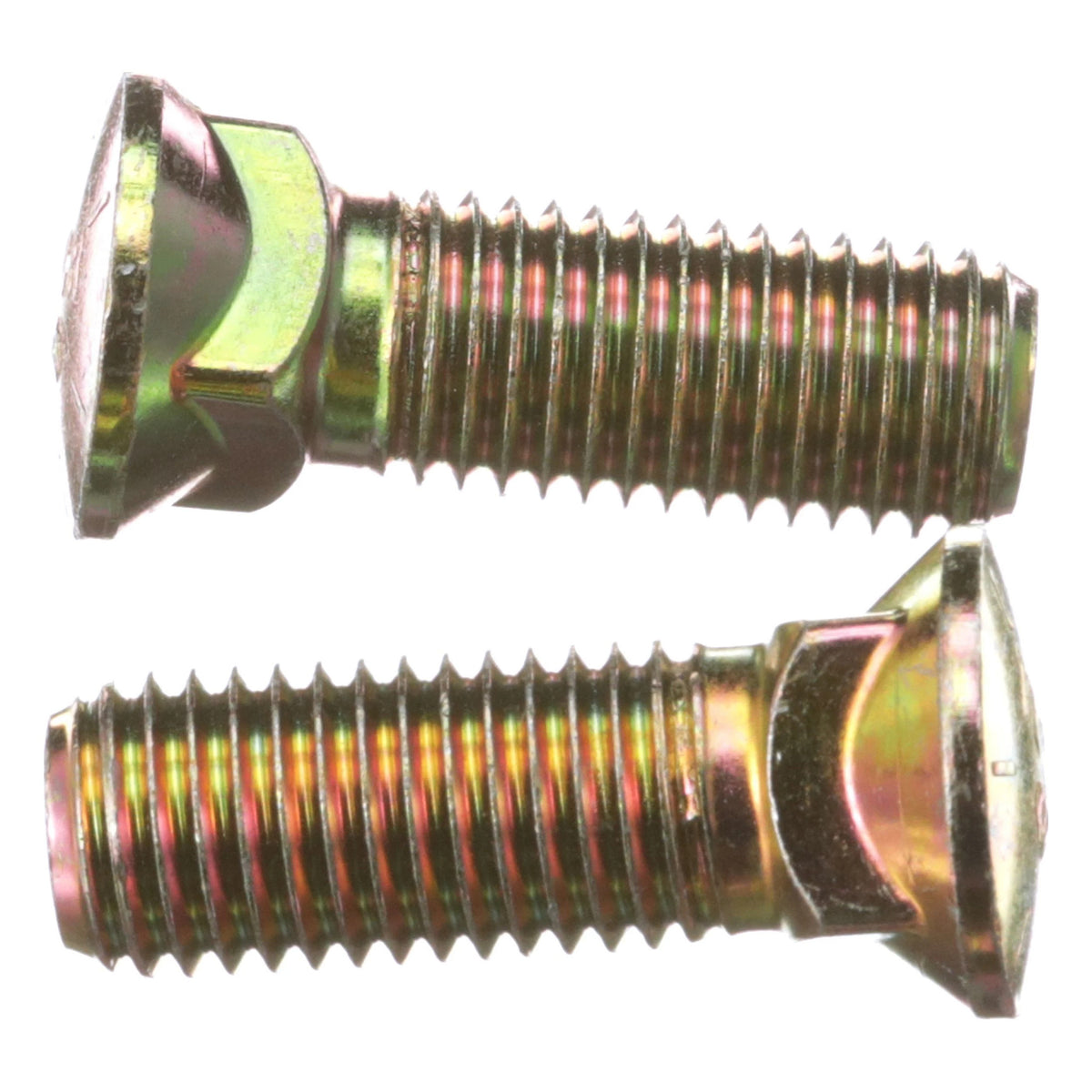

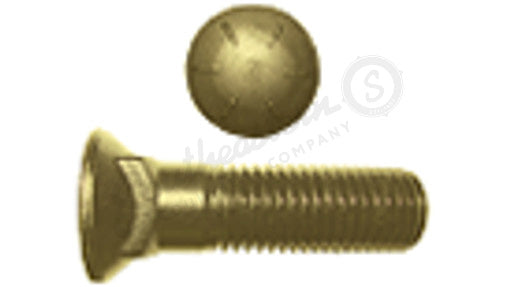

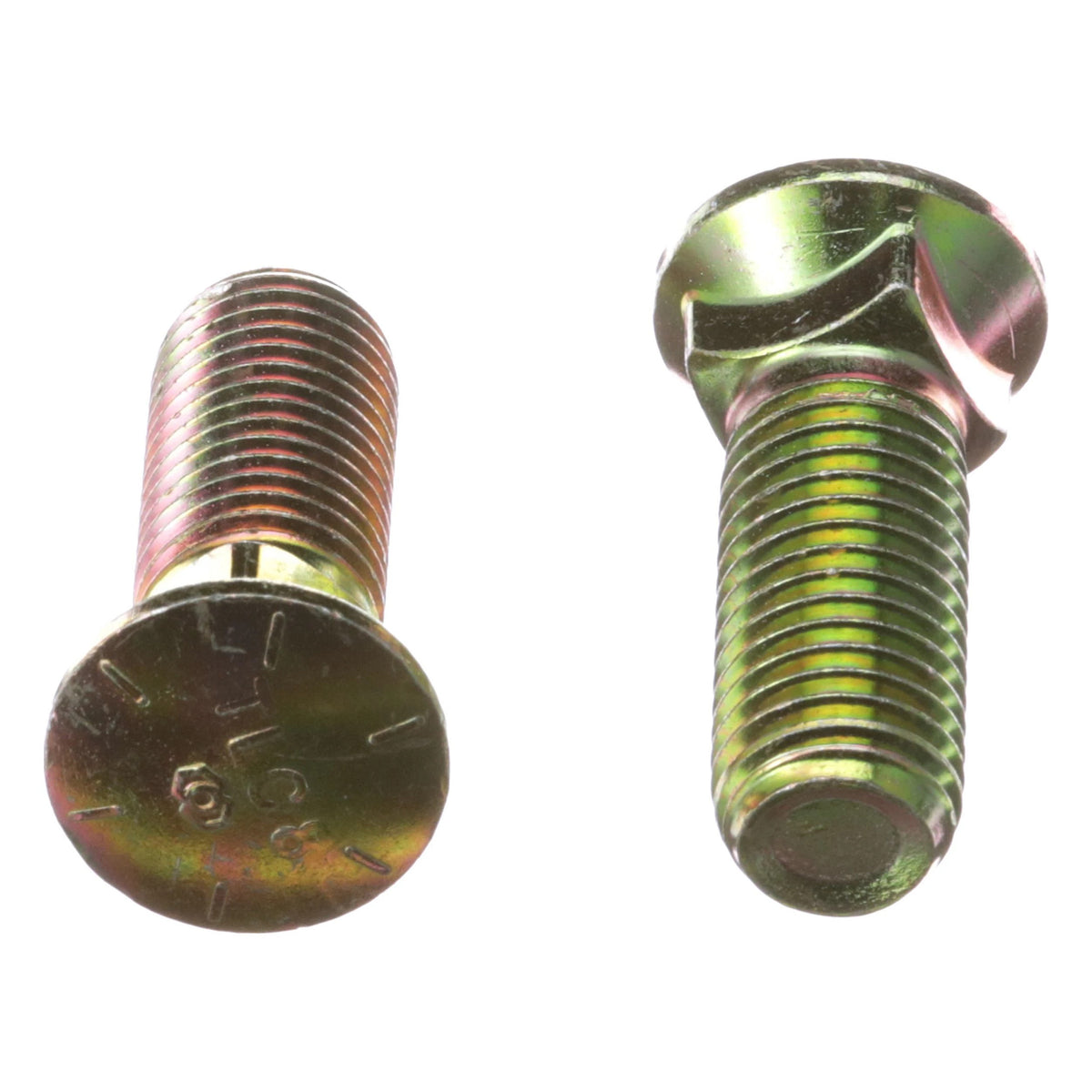

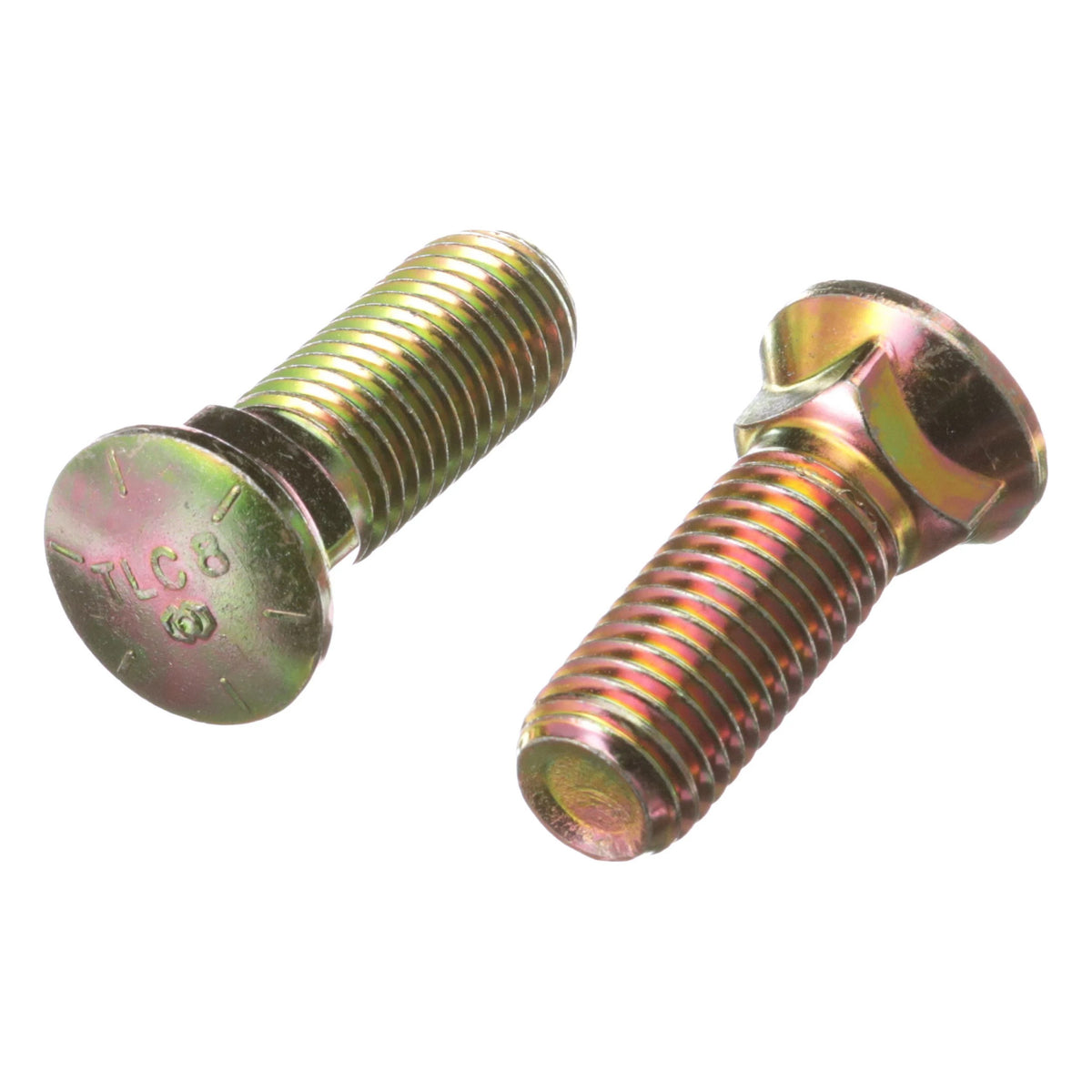

Bolt Carriage

Enhance your Case Construction equipment’s performance with the durable Bolt Carriage #420-21236. Designed for reliability and strength, this essential part ensures optimal functionality, making it a must-have for heavy equipment maintenance and operation.

Compatible equipment

This part fits WHEEL LOADER - TIER 4B (NA), CASE UNI-LOADER SKID STEER LOADER (NORTH AMERICA), FRONT END LOADER, SKID STEER - BSN N7M454787, SKID STEER - TIER 3 ASN N7M454787, COMPACT TRACK LOADER - TIER 3 ASN N8M458846, SKID STEER TIER 2 P.I.N. N7M458414 & PRIOR, SKID STEER TIER 3 P.I.N. N7M464019 & AFTER, COMPACT TRACK LOADER - SERIES 3 ASN N7M464019, SKID STEER - TIER 3 ASN N7M452623, SKID STEER BSN N7M452623, CASE WHEEL LOADER (BEFORE S/N JEE0135500), CASE WHEEL LOADER (S/N JEE0135501 & AFTER) - ENGINE SUPPLEMENT, CASE WHEEL LOADER - NA (S/N JEE0135501 & AFTER), WHEEL LOADER TIER 3 (NA), WHEEL LOADER - TIER 4 (NA), LOADER LANDSCAPER - LIVERY - TIER 4B, BACKHOE LOADER 2WD - TIER 3 NRC - MY18, BACKHOE LOADER 2WD - TIER 3 NRC - MY19, BACKHOE LOADER 2WD - TIER 4B - MY18, BACKHOE LOADER 2WD - TIER 4B - MY19, BACKHOE LOADER 4WD - TIER 3 NRC - MY18, BACKHOE LOADER 4WD - TIER 3 NRC - MY19, BACKHOE LOADER 4WD - TIER 4B - MY18, BACKHOE LOADER 4WD - TIER 4B - MY19, LOADER BACKHOE (TIER 3), LOADER BACKHOE - TIER 3, BACKHOE LOADER (LIVERY) - WIDE TRACK - TIER 3 NRC, BACKHOE LOADER (LIVERY) - WIDE TRACK - TIER 4B, BACKHOE LOADER - WIDE TRACK - TIER 4B, BACKHOE LOADER 4WD - WIDE TRACK - TIER 3 NRC - MY18, BACKHOE LOADER 4WD - WIDE TRACK - TIER 3 NRC - MY19, BACKHOE LOADER 4WD - WIDE TRACK - TIER 4B - MY18, BACKHOE LOADER 4WD - WIDE TRACK - TIER 4B - MY19, BACKHOE LOADER WIDE TRACK - TIER 3, BACKHOE LOADER WIDE TRACK - TIER 3 NRC, LOADER BACKHOE (NORTH AMERICA), SERIES 2 LOADER BACKHOE TIER 2 (NA) - ASN N4C309000, SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C508500, SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N7C431854, BACKHOE LOADER (LIVERY) - TIER 3 NRC, BACKHOE LOADER (LIVERY) - TIER 4B, BACKHOE LOADER - TIER 3 NRC, BACKHOE LOADER - TIER 4A, BACKHOE LOADER - TIER 4B, LOADER BACKHOE - TIER 3 NRC, WHEEL LOADER WASTE HANDLING - TIER 4A (NA), CASE WHEEL LOADER (NORTH AMERICA), WHEEL LOADER - TIER 4 / TIER 2 (NA), WHEEL LOADER TIER 3 NA/EU, CRUSHER, CASE IH FRONT END LOADER, CASE IH SELF-LEVELING LOADER, CASE IH FRONT END LOADER - MAGNUM TRACTOR, TELEHANDLER, WHEEL LOADER (REV 05/2005), WHEEL LOADERS (NA), WHEEL LOADER, WHEEL LOADER (W130/W130TC) (NA), WHEEL LOADER - TIER 2 (INT), WHEEL LOADERS including models 1021G, 1121G, 1845C, 32LC, 445, 445CT, 450, 450CT, 465, 521D, 521E, 521F, 521G, 52LB, 52LC, 56LB, 570N EP, 580N, 580N EP, 580SN, 580SN WT, 590SM, 590SN, 621D, 621E.

Frequently asked questions

What is the part number?

The manufacturer part number is 420-21236.

Is this a genuine OEM part?

Yes. Southeastern Equipment stocks OEM and quality aftermarket parts for heavy equipment. Contact us if you need a specific OEM source or aftermarket option.

Will this fit my machine?

See the compatible equipment list above. If your model is not listed, call us with your machine's serial number and we can confirm.

Where does this ship from?

Southeastern Equipment Company ships parts nationwide from our US warehouse. Orders placed before 2 PM ET typically ship same day.
