Tilt Tube Assembly
Case Construction ·18 Fitments
| Machine | Model | Years |
|---|---|---|
| SERIES 1 CRAWLER - 07/01/2002 - 01/31/2005 | 650K | 2002 – 2005 |
| SERIES 2 CRAWLER TIER 2 - 01/21/2005 - 06/16/2006 | 650K | 2005 – 2008 |
| SERIES 3 CRAWLER TIER 2 - 06/20/2006 - 12/31/2008 | 650K | 2005 – 2008 |
| SERIES 1 CRAWLER - 07/01/2002 - 01/31/2005 | 750K | 2002 – 2005 |
| SERIES 2 CRAWLER TIER 2 - 01/21/2005 - 06/16/2006 | 750K | 2005 – 2008 |
| CRAWLER DOZER TIER 3 | 750L | 2008 – 2012 |
| SERIES 1 CRAWLER - 07/01/2002 - 01/31/2005 | 850K | 2002 – 2005 |
| SERIES 2 CRAWLER TIER 2 - 01/21/2005 - 06/16/2006 | 850K | 2005 – 2008 |
| SERIES 3 CRAWLER TIER 2 - 06/20/2006 - 12/31/2008 | 850K | 2005 – 2008 |
| CRAWLER DOZER TIER 3 | 850L | 2008 – 2013 |

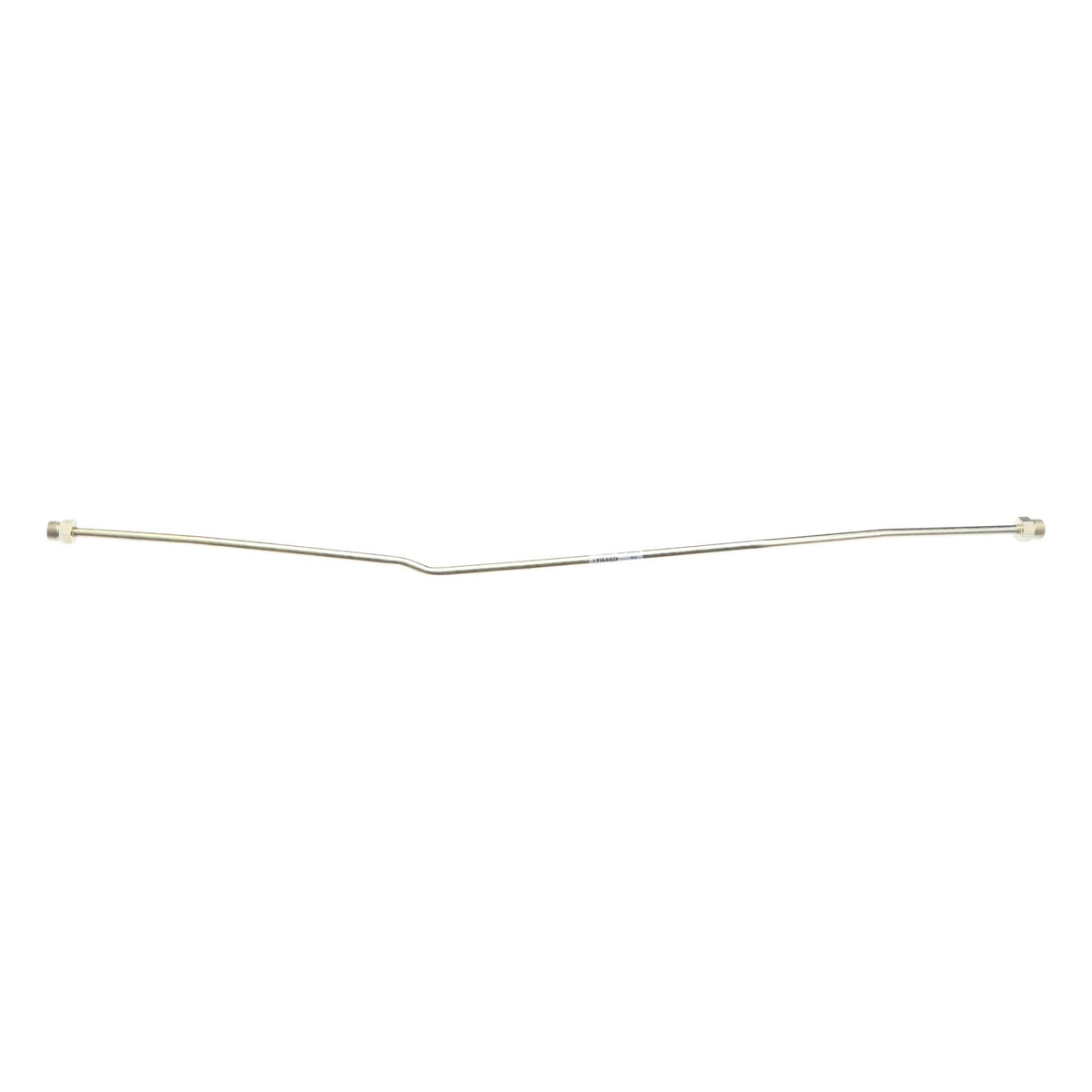

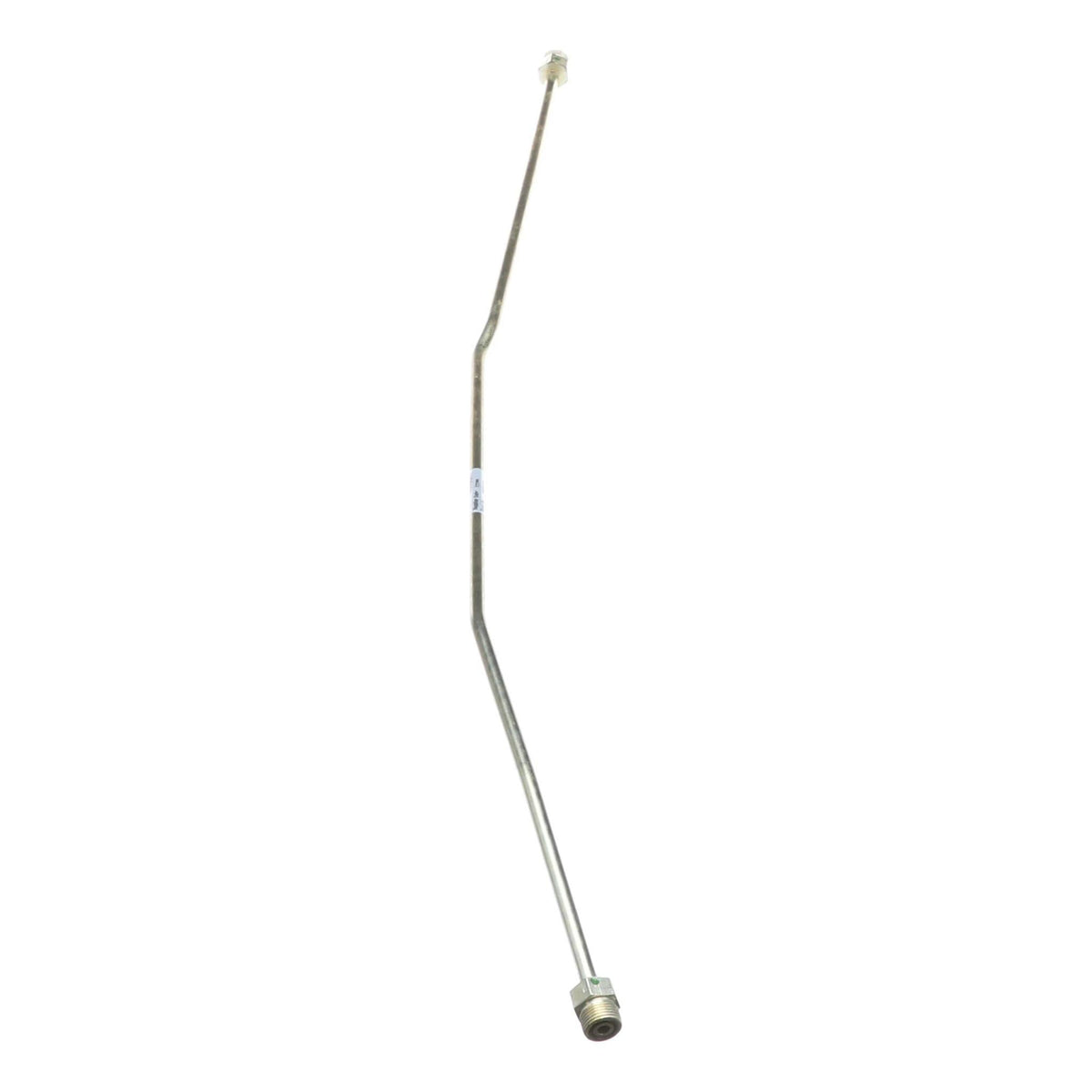

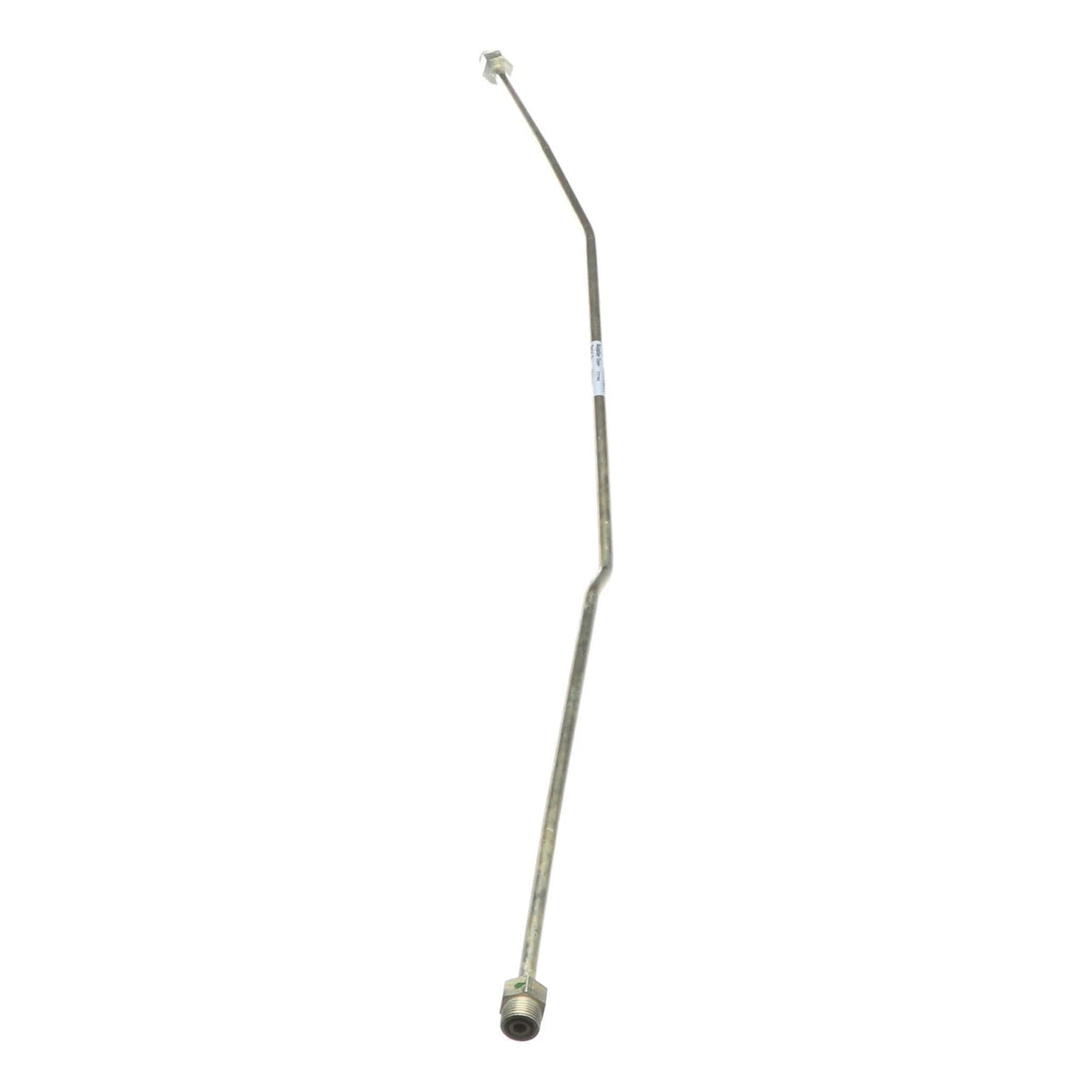

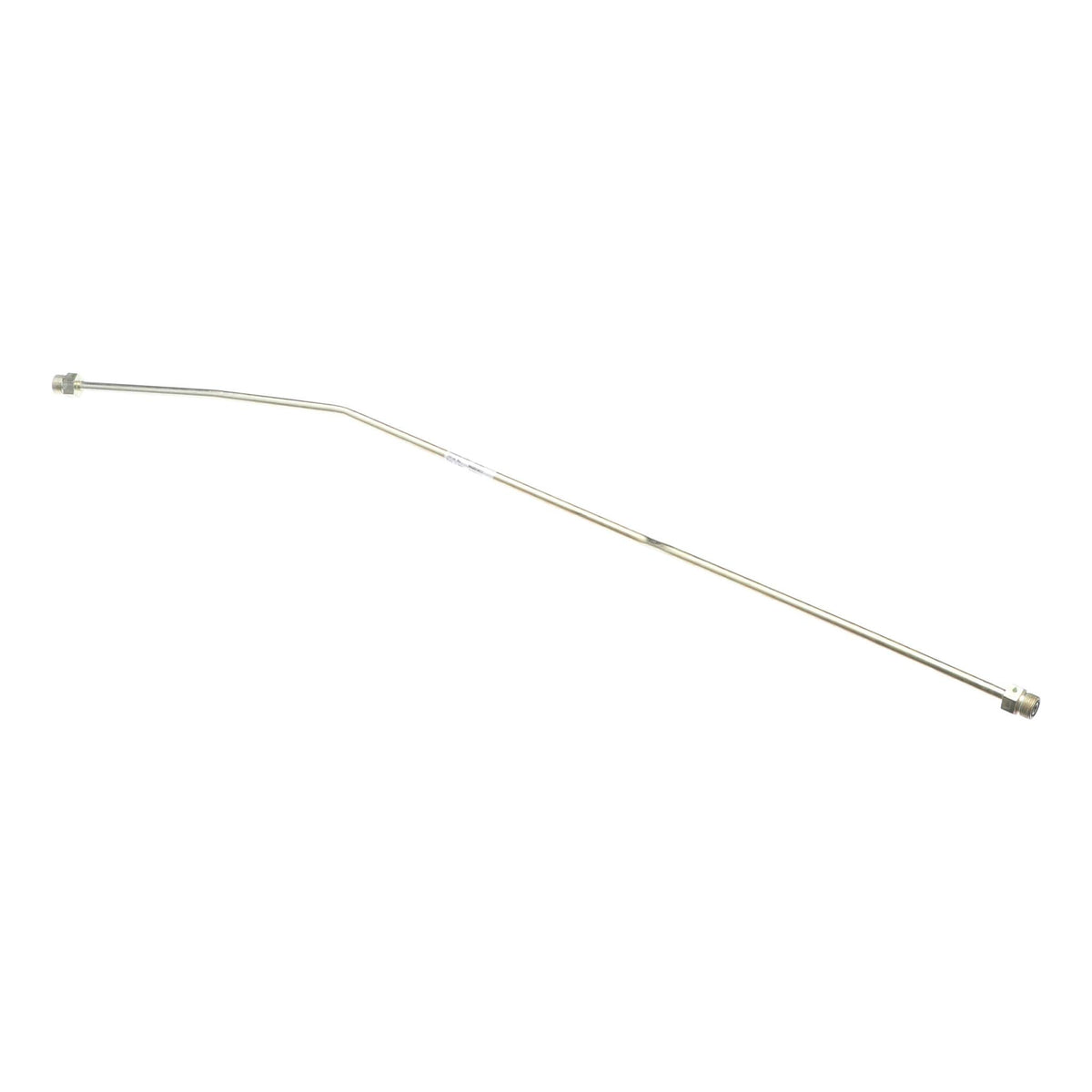

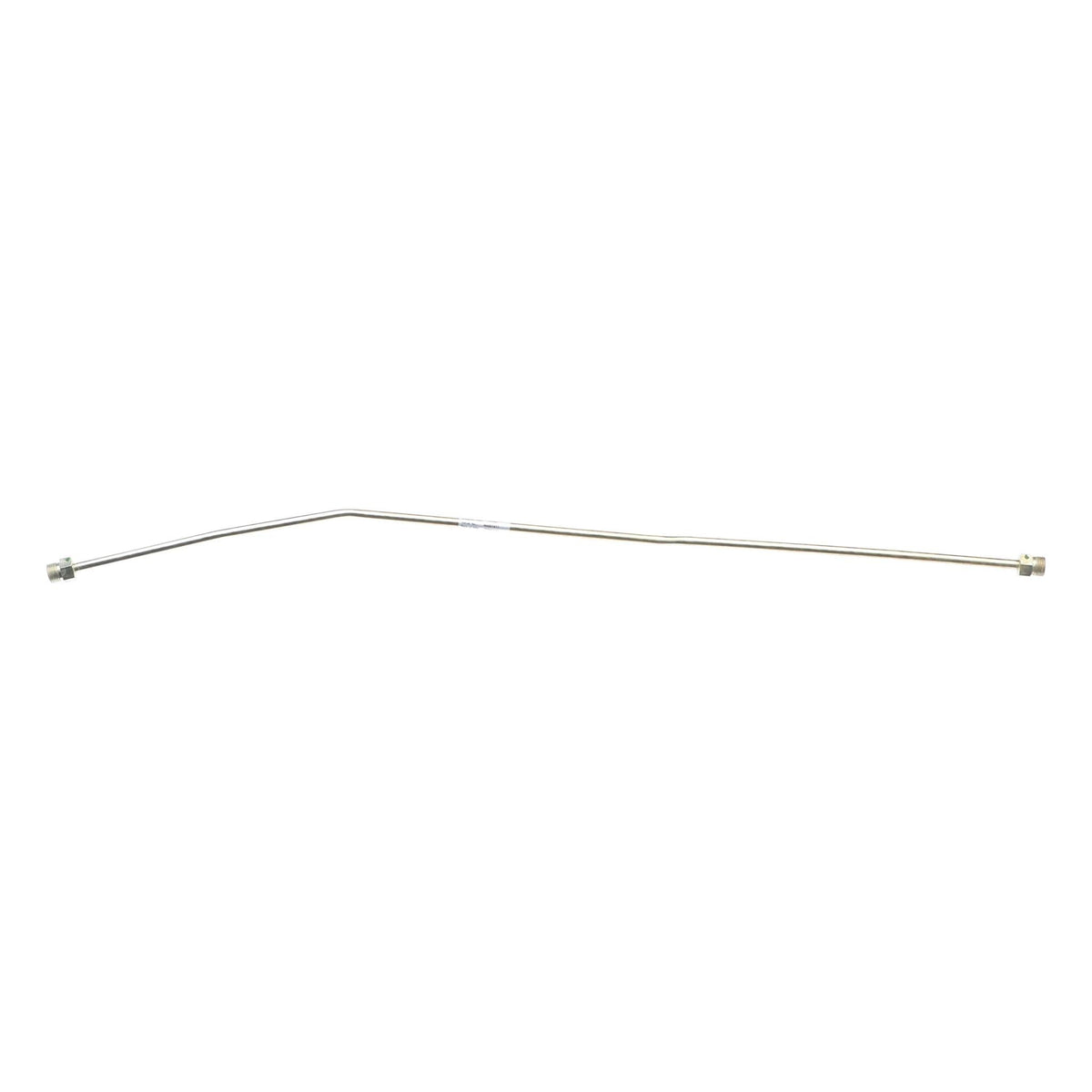

OEM Case Construction Tilt Tube Assembly #426936A1 – Smooth Tilt Adjustment for Attachments
This Tilt Tube Assembly (#426936A1) allows secure and precise tilting of work tools in Case machines. OEM-built for strong, smooth operation under load.
More Details
Part Number: 426936A1
Application: Attachment tilt mechanism
Key Features:
- OEM dimensions for exact movement range
- Built to resist bending and corrosion
- Supports heavy-duty construction attachments
Fits Case Models: Confirm fitment with tool mount or loader arm system.
Compatible equipment
This part fits SERIES 1 CRAWLER - 07/01/2002 - 01/31/2005, SERIES 2 CRAWLER TIER 2 - 01/21/2005 - 06/16/2006, SERIES 3 CRAWLER TIER 2 - 06/20/2006 - 12/31/2008, CRAWLER DOZER TIER 3, CRAWLER DOZER - NA, CRAWLER DOZER including models 650K, 750K, 750L, 850K, 850L, D75, D85, D85B, D95, D95B, DC75, DC85, DC95.
Frequently asked questions
What is the part number?
The manufacturer part number is 426936A1.
Is this a genuine OEM part?
Yes. Southeastern Equipment stocks OEM and quality aftermarket parts for heavy equipment. Contact us if you need a specific OEM source or aftermarket option.
Will this fit my machine?
See the compatible equipment list above. If your model is not listed, call us with your machine's serial number and we can confirm.
Where does this ship from?
Southeastern Equipment Company ships parts nationwide from our US warehouse. Orders placed before 2 PM ET typically ship same day.
- Manufacturer part number
- 426936A1
- Internal SKU
- IC:426936A1
- Brand
- CASE CONSTRUCTION
- Condition
- OEM, new
- Category
- Case Construction
- Weight
- 0.74 lb
Free pickup at any of our 17 branches across Ohio, Indiana, Michigan, and Kentucky. Select your preferred branch at checkout.
30-day no-fault returns. Bought the wrong part? Send it back for a full refund — no restocking fees, no minimums.
All 18 fitments
| Machine | Model | Years |
|---|---|---|
| SERIES 1 CRAWLER - 07/01/2002 - 01/31/2005 | 650K | 2002 – 2005 |
| SERIES 2 CRAWLER TIER 2 - 01/21/2005 - 06/16/2006 | 650K | 2005 – 2008 |
| SERIES 3 CRAWLER TIER 2 - 06/20/2006 - 12/31/2008 | 650K | 2005 – 2008 |
| SERIES 1 CRAWLER - 07/01/2002 - 01/31/2005 | 750K | 2002 – 2005 |
| SERIES 2 CRAWLER TIER 2 - 01/21/2005 - 06/16/2006 | 750K | 2005 – 2008 |
| CRAWLER DOZER TIER 3 | 750L | 2008 – 2012 |
| SERIES 1 CRAWLER - 07/01/2002 - 01/31/2005 | 850K | 2002 – 2005 |
| SERIES 2 CRAWLER TIER 2 - 01/21/2005 - 06/16/2006 | 850K | 2005 – 2008 |
| SERIES 3 CRAWLER TIER 2 - 06/20/2006 - 12/31/2008 | 850K | 2005 – 2008 |
| CRAWLER DOZER TIER 3 | 850L | 2008 – 2013 |
| CRAWLER DOZER - NA | D75 | 2004 – 2008 |
| CRAWLER DOZER - NA | D85 | 2004 – 2007 |
| CRAWLER DOZER TIER 3 | D85B | 2008 – 2012 |
| CRAWLER DOZER - NA | D95 | 2004 – 2008 |
| CRAWLER DOZER TIER 3 | D95B | 2008 – 2012 |
| CRAWLER DOZER | DC75 | 2004 – 2006 |
| CRAWLER DOZER | DC85 | 2004 – 2006 |
| CRAWLER DOZER | DC95 | 2004 – 2008 |
