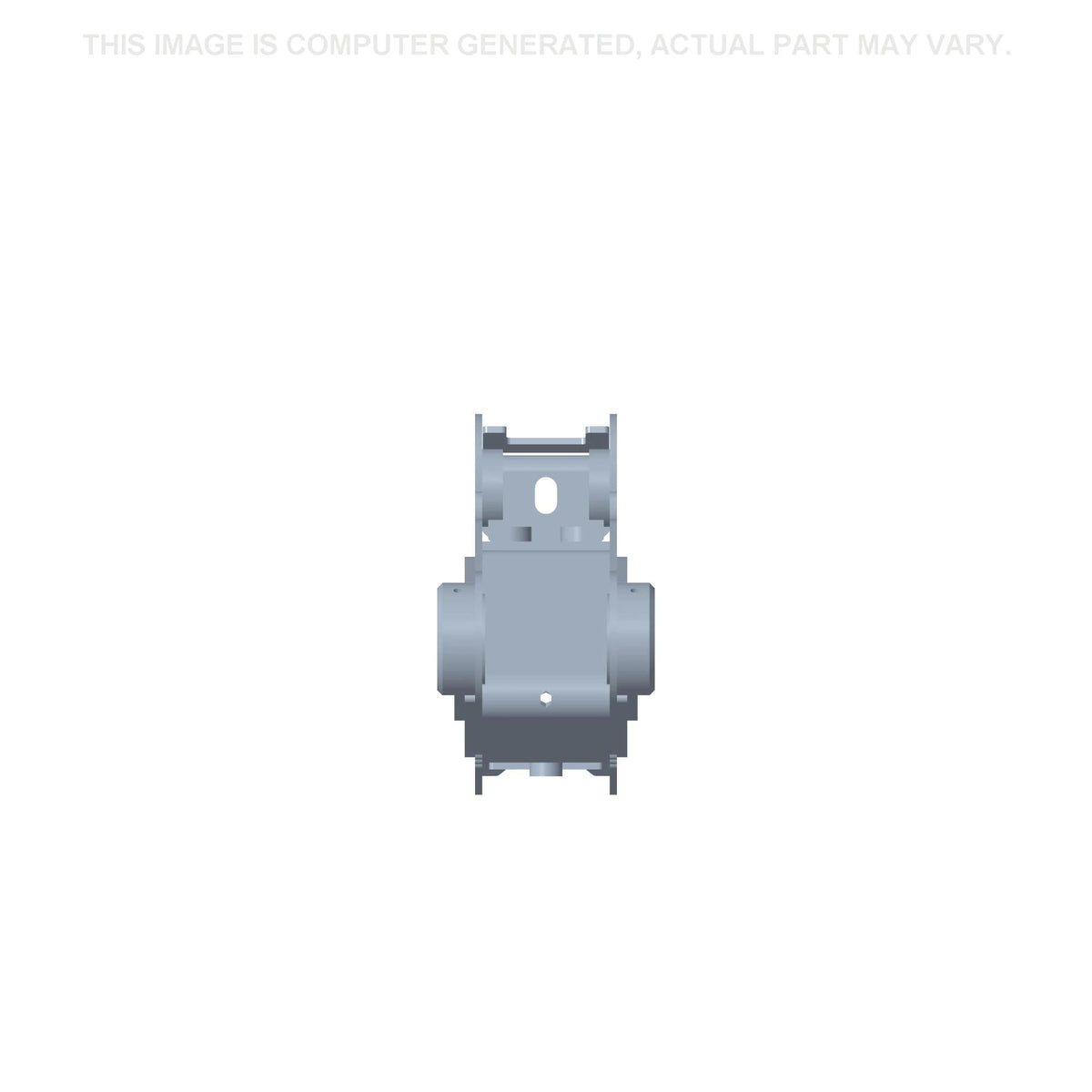

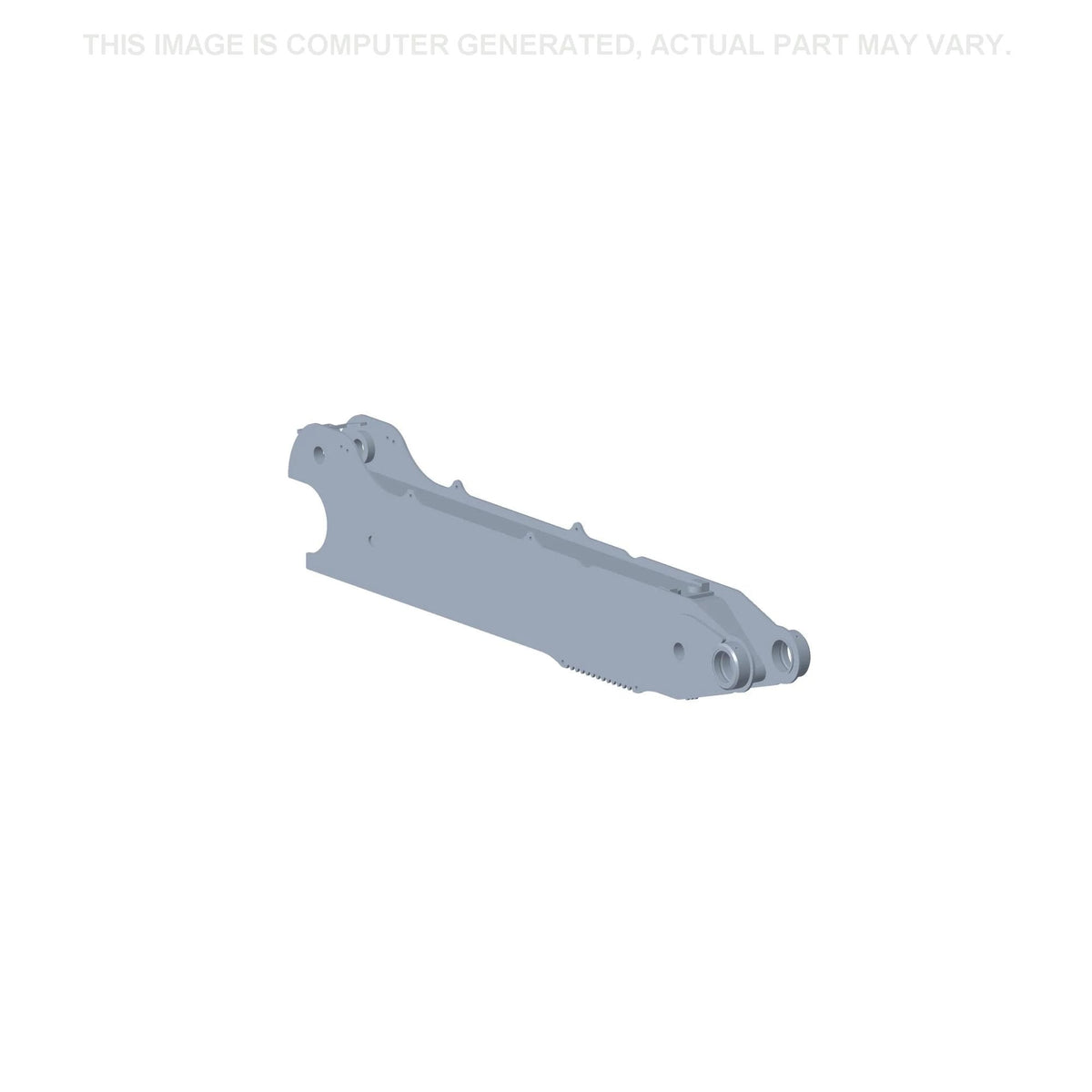

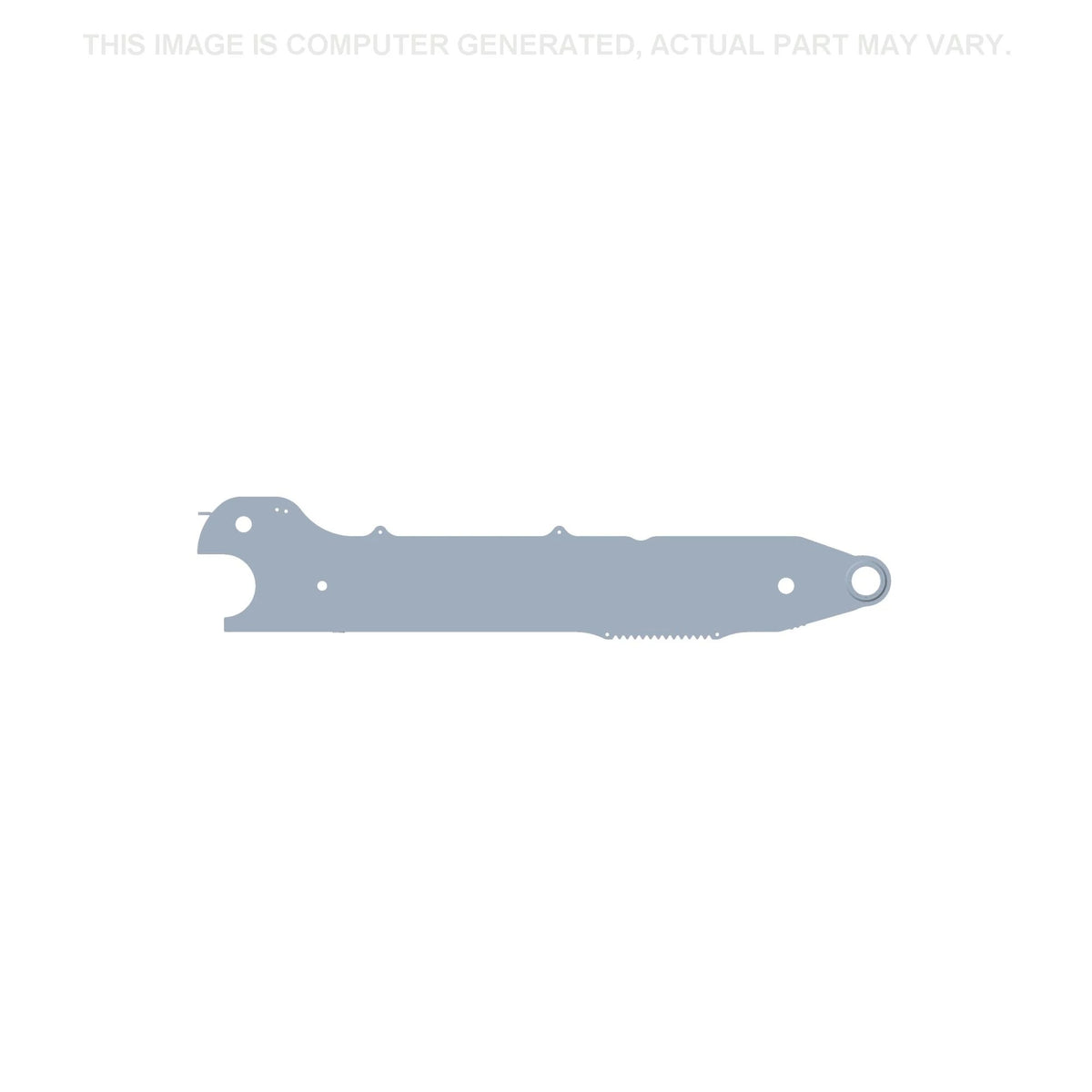

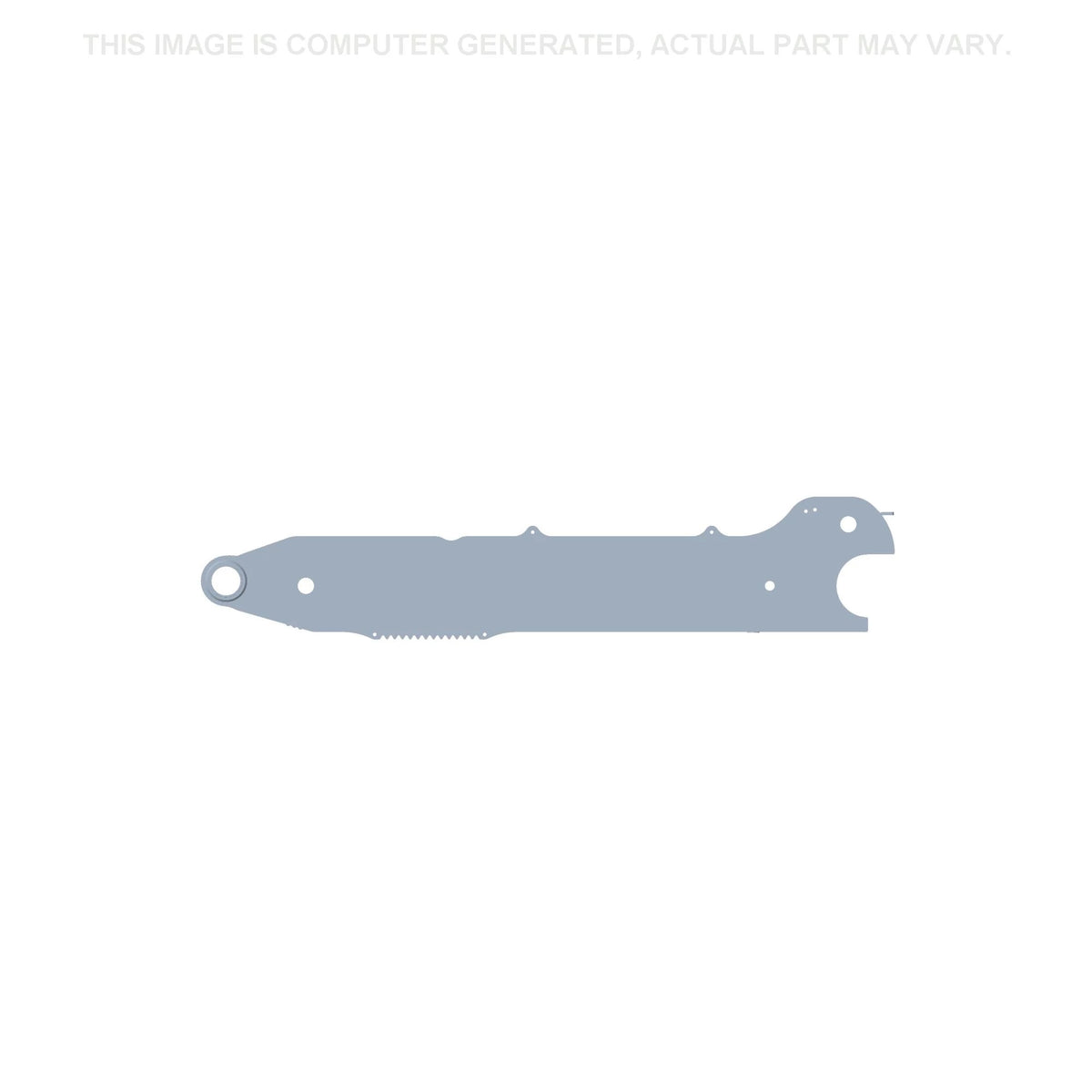

Case Construction OEM Part No. 47648609

Arm Dipper

Name: 47648609 - OEM Arm Dipper - Case Construction
Brand: CASE CE
SKU: 47648609
Price: 5765.00 USD
Availability: InStock

Case Construction

$5,765.00 Available

3 verified fitments

Select your machine to check fit

Not sure it’s the right part? Talk to a parts specialist (740) 432-6303Mon–Fri 7:30 AM–5 PM EST

Ships nationwideUPS, USPS & freight

30-day returnsNew, unused parts

OEM guaranteedDirect from manufacturer

Machine	Model	Years / S/N
Backhoe	580SV	2022, 2021
Backhoe	580ST	2019

OEM Arm Dipper Outer Assembly #47648609 - OEM Wear Joint Service Part for Heavy Equipment Repair Applied during replacement service, this OEM component helps correct excess play, pivot wear, poor articulation, and loose linkage movement caused by wear tied to replacement of worn articulation components during service intervals. Used in repair departments handling OEM bushing replacement, bearing service, pivot repair, and linkage maintenance requirements.

More Details

Part Number: 47648609

Application: Repair application: Bushing, bearing, or linkage replacement used to repair excess play, worn pivots, poor articulation, and joint-related service wear.

Key Features:

Designed to replace articulation parts affected by wear, looseness, or poor alignment
Supports repair of joint knock, unstable movement, and pivot-related service issues
OEM-style fit for efficient installation during linkage maintenance

Fits Case Models: Compatible with various Case construction equipment models - verify fitment before ordering

Replaces: Refer to manufacturer cross-reference if applicable

WARNING:For California residents — Cancer and Reproductive Harm. www.P65Warnings.ca.gov

Manufacturer part number: 47648609
Brand: Case Construction
Condition: OEM, new
Category: Case Construction
Weight: 330.69 lb

Ships nationwide. In-stock parts ordered before 2:30 PM ET ship the same business day. Your exact shipping cost and delivery estimate are calculated at checkout from your ZIP code and the part’s size and weight; oversized and truck-freight items may need extra transit time and freight charges.

Free branch pickup is also available across Ohio, Indiana, Michigan, and Kentucky — just choose it at checkout.

30-day returns. New, unused parts in original packaging may be returned within 30 days. Some items — including electrical, special-order, and direct-from-supplier parts — are non-returnable. See our full return policy.

$5,765.00
