Case Construction OEM Part No. 47696685

Elec Connector

Case Construction

$44.60 Available
23 verified fitments
Select your machine to check fit
Not sure it’s the right part? Talk to a parts specialist (740) 432-6303Mon–Fri 7:30 AM–5 PM EST
Ships nationwideUPS, USPS & freight
30-day returnsNew, unused parts
OEM guaranteedDirect from manufacturer
Machine Model Years / S/N
Combine 7250 2023
Combine 8250 2023
Tractor 570N EP NC —
Tractor U80D —
Combine 9260 AXIAL-FLOW 2024
Combine 8260 AXIAL-FLOW 2024
Combine 7260 AXIAL-FLOW 2024
Combine 9250 2024
Combine 7250 2024
Combine 8250 2024

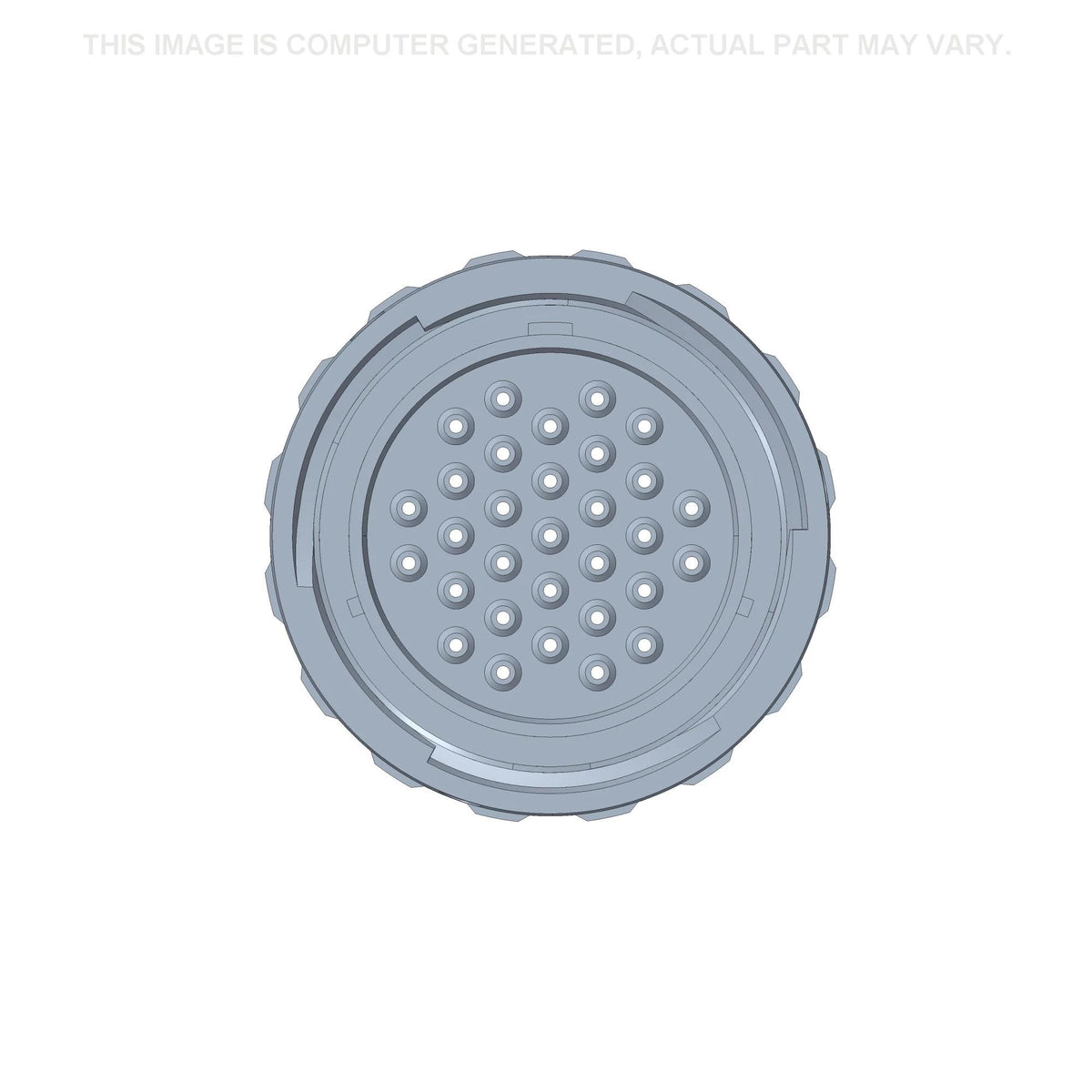

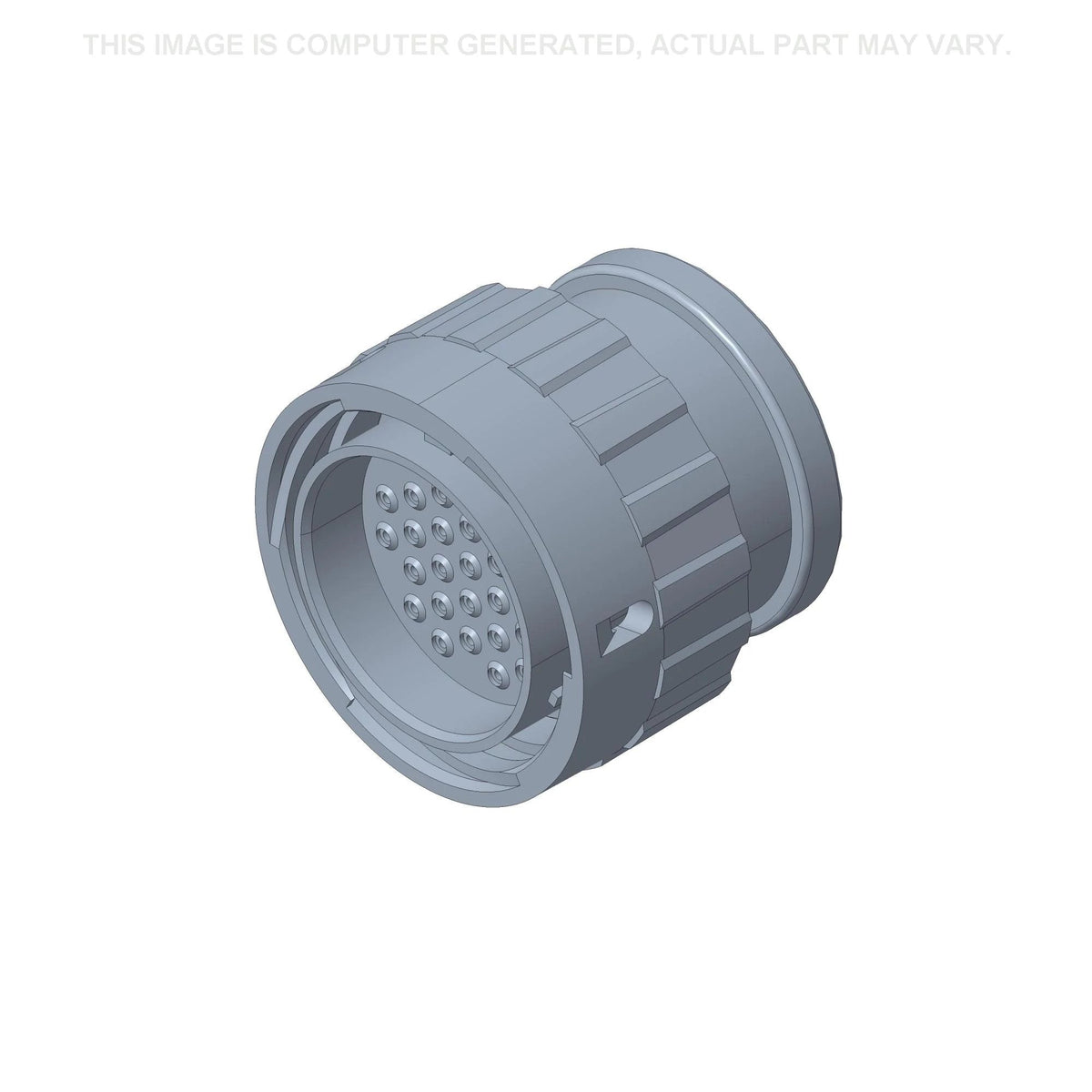

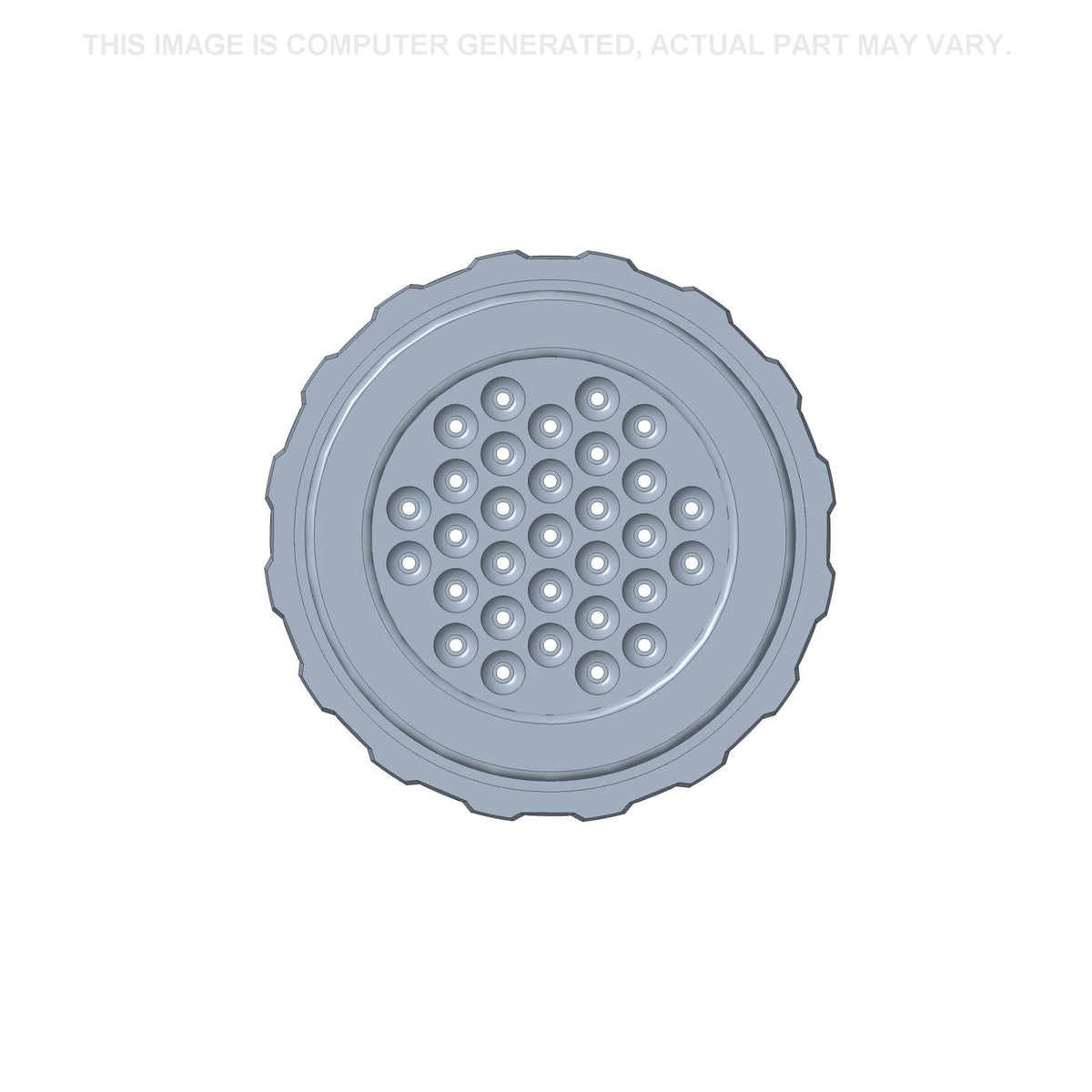

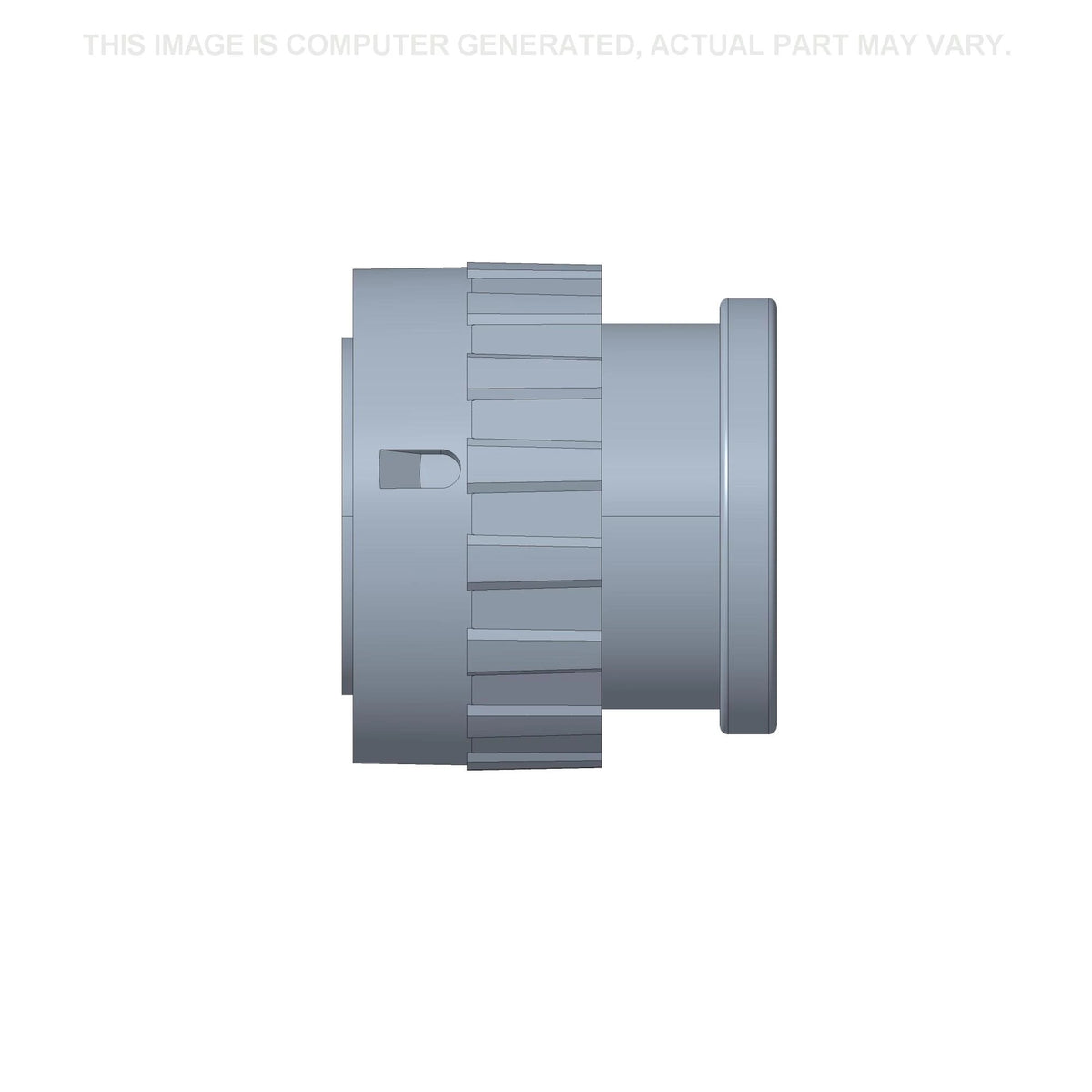

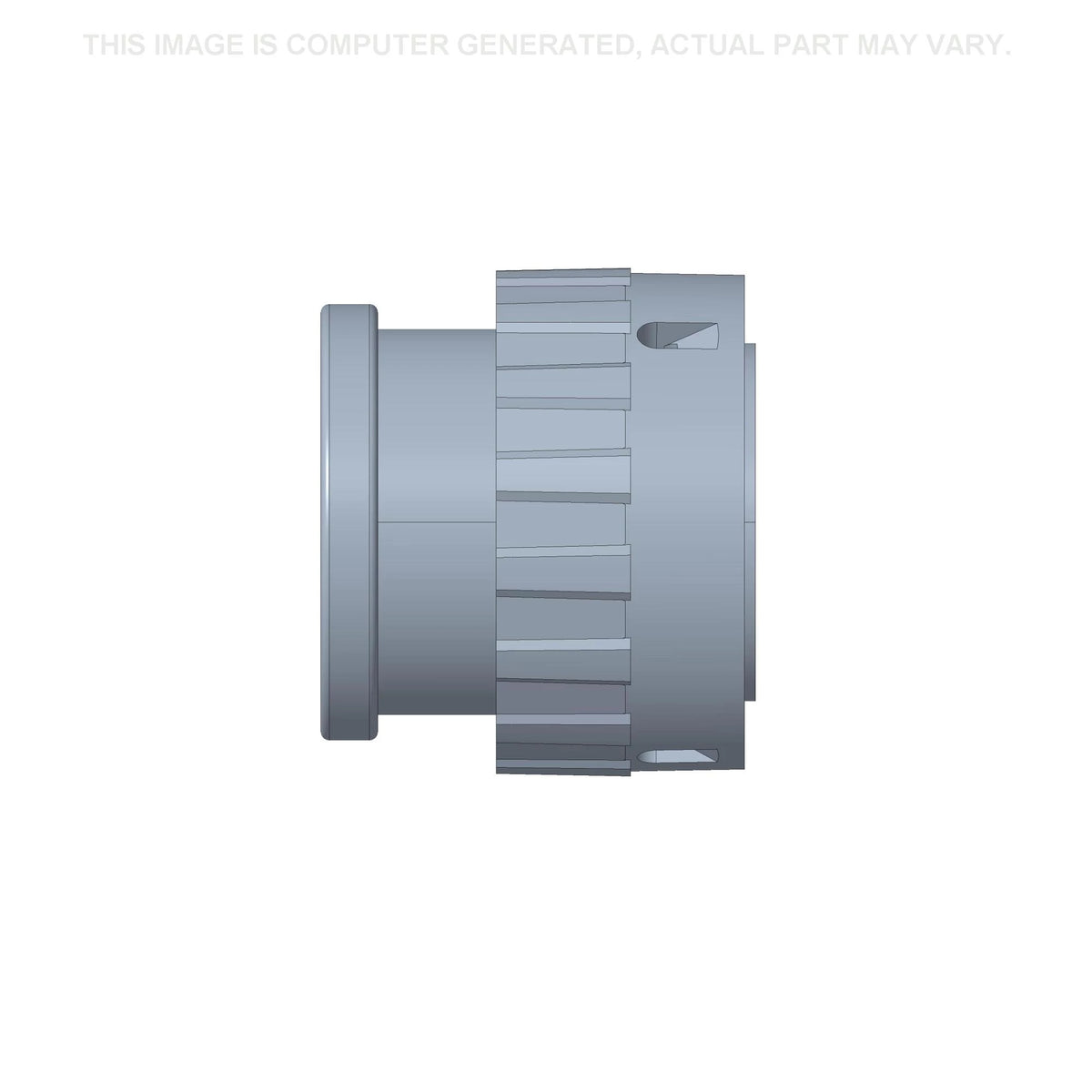

OEM Elec Connector Sealed 31 Pin Front To Side Harness X-150B #47696685 - OEM Electrical Replacement Part for Case Construction Equipment Repair This part supports service replacement of worn OEM components in repair situations involving frayed wiring, broken conductors, and intermittent electrical connections and frayed cable jackets, intermittent power, shorts, and open circuits. A practical OEM option for OEM replacement cable, heavy equipment wiring repair, harness replacement, and Case electrical service jobs in the field.

More Details

Part Number: 47696685

Application: OEM cable or harness replacement for heavy equipment electrical service involving shorts, broken conductors, or connector damage.

Key Features:

  • Designed to replace worn wiring, damaged leads, and failed connection points
  • Supports repair of intermittent power, voltage drop, and no-start electrical issues
  • OEM-style fit for efficient installation during maintenance service

Fits Case Models: Compatible with various Case construction equipment models - verify fitment before ordering

Replaces: Refer to manufacturer cross-reference if applicable

WARNING:For California residents — Cancer and Reproductive Harm. www.P65Warnings.ca.gov

Manufacturer part number
47696685
Brand
Case Construction
Condition
OEM, new
Category
Case Construction
Weight
0.12 lb

Ships nationwide. In-stock parts ordered before 2:30 PM ET ship the same business day. Your exact shipping cost and delivery estimate are calculated at checkout from your ZIP code and the part’s size and weight; oversized and truck-freight items may need extra transit time and freight charges.

Free branch pickup is also available across Ohio, Indiana, Michigan, and Kentucky — just choose it at checkout.

30-day returns. New, unused parts in original packaging may be returned within 30 days. Some items — including electrical, special-order, and direct-from-supplier parts — are non-returnable. See our full return policy.

$44.60
