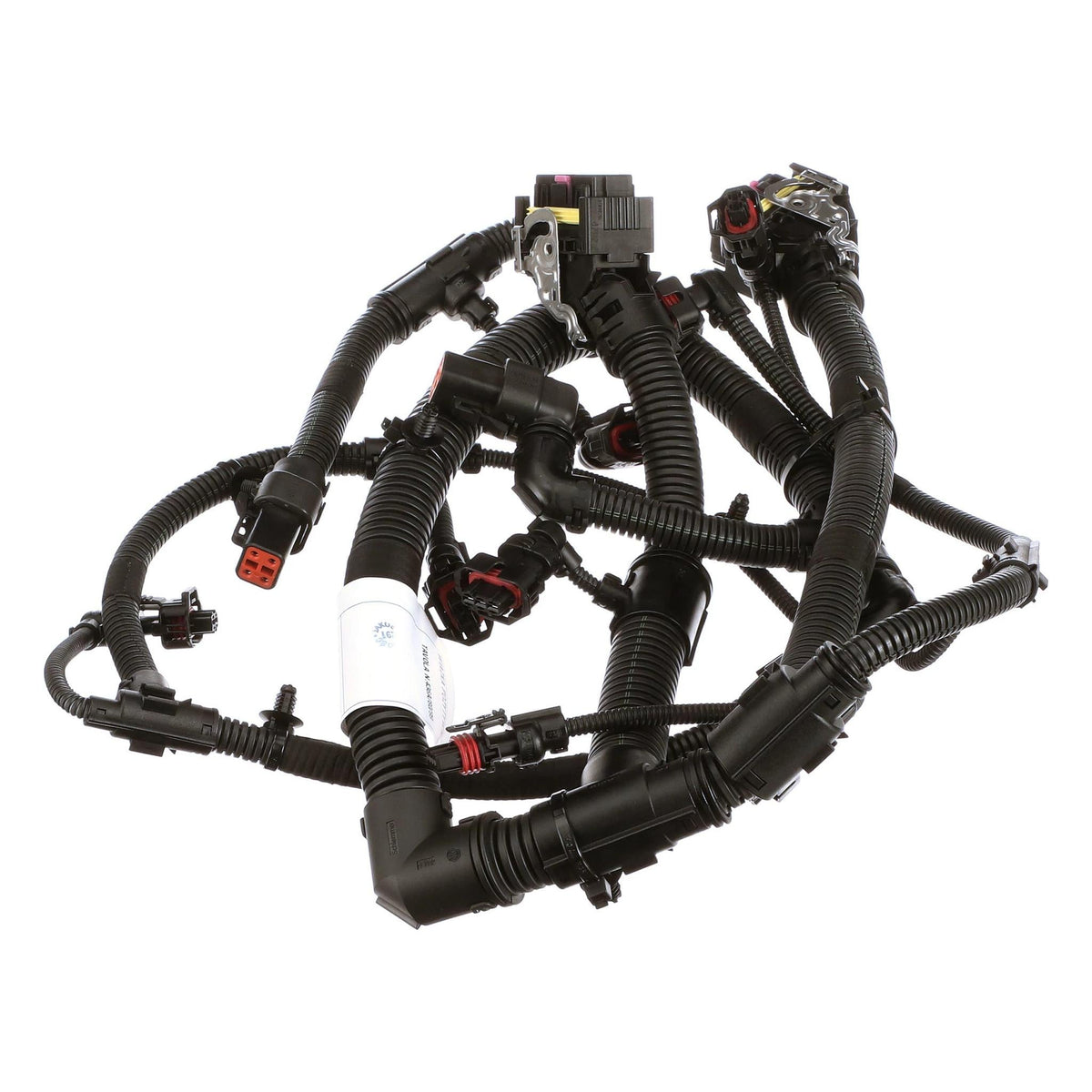

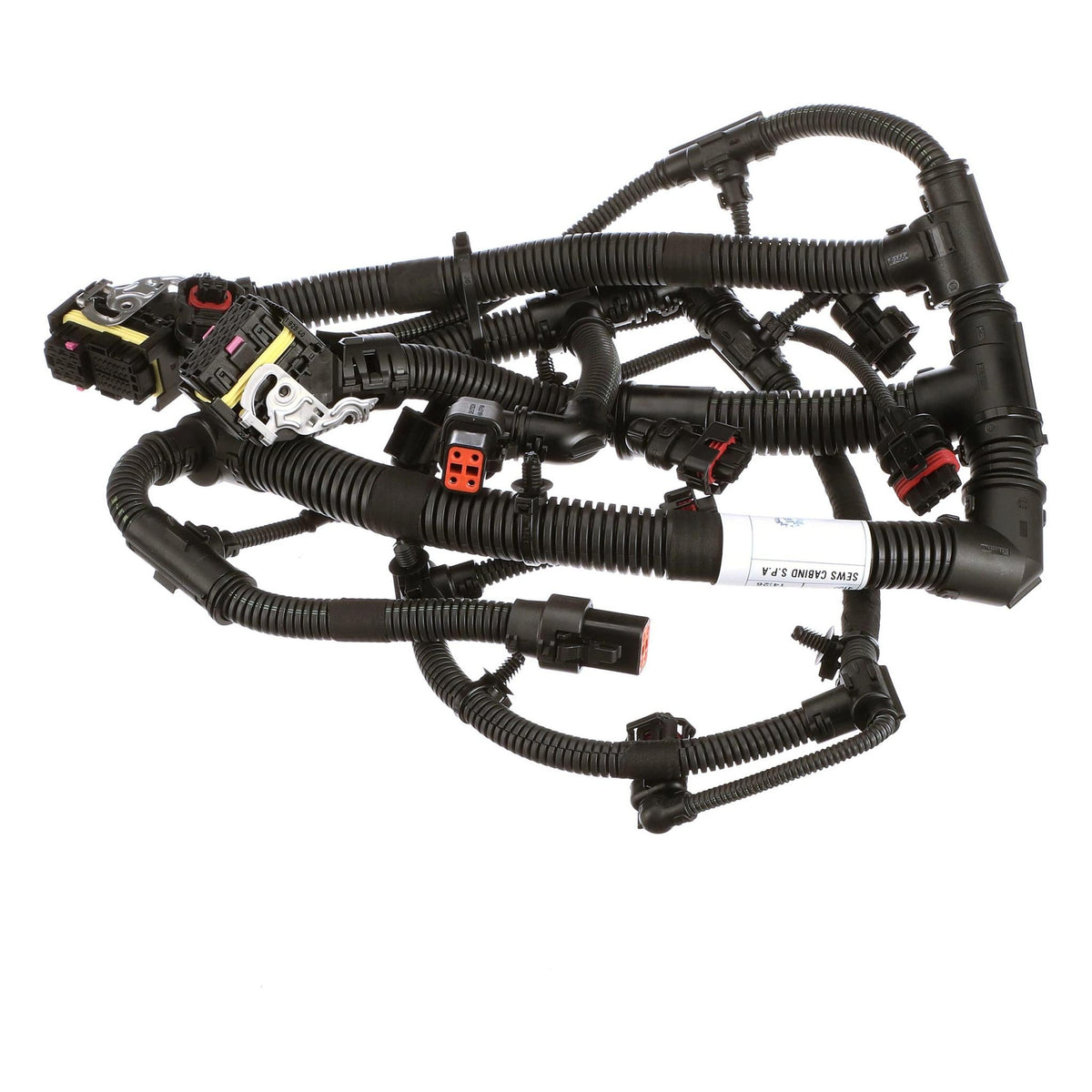

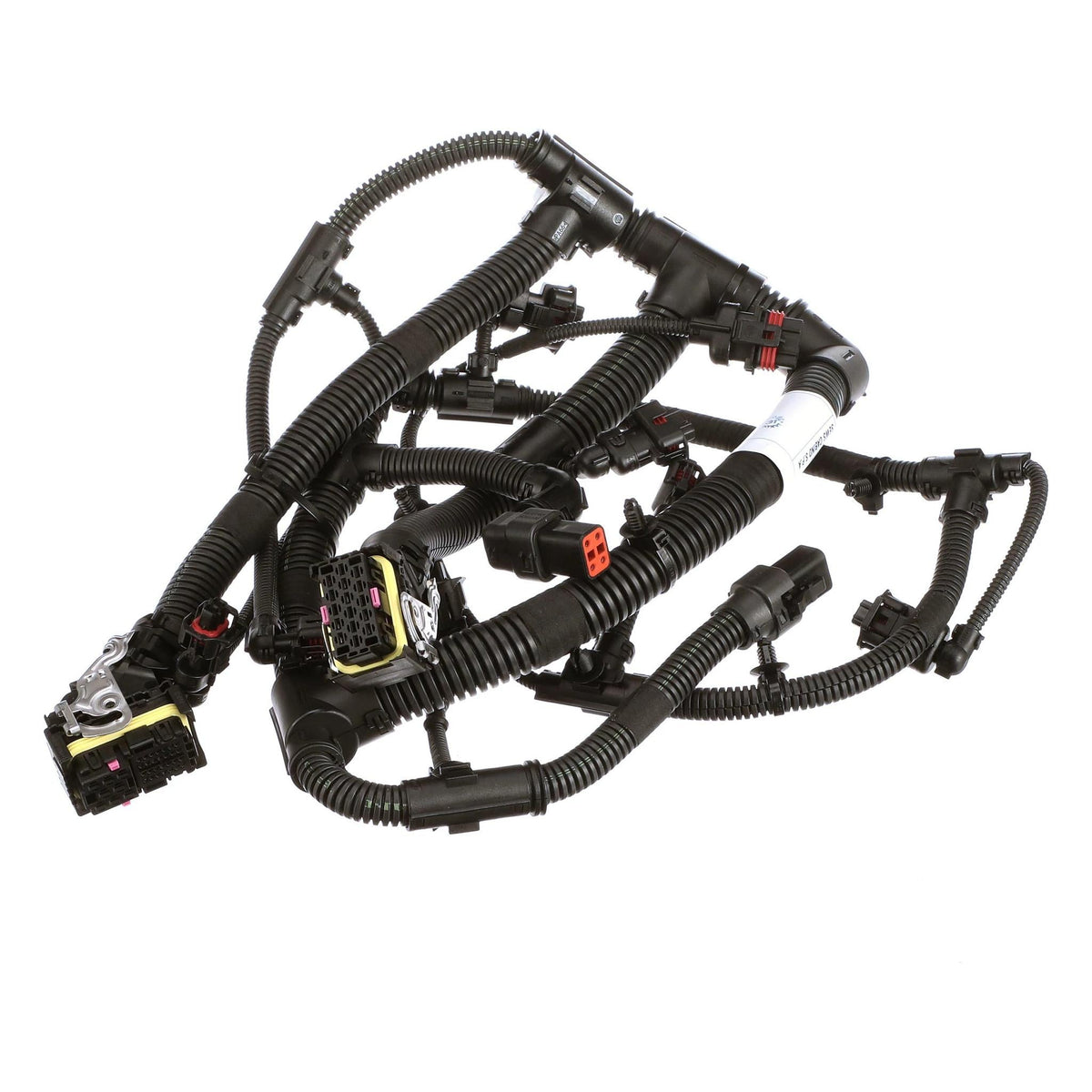

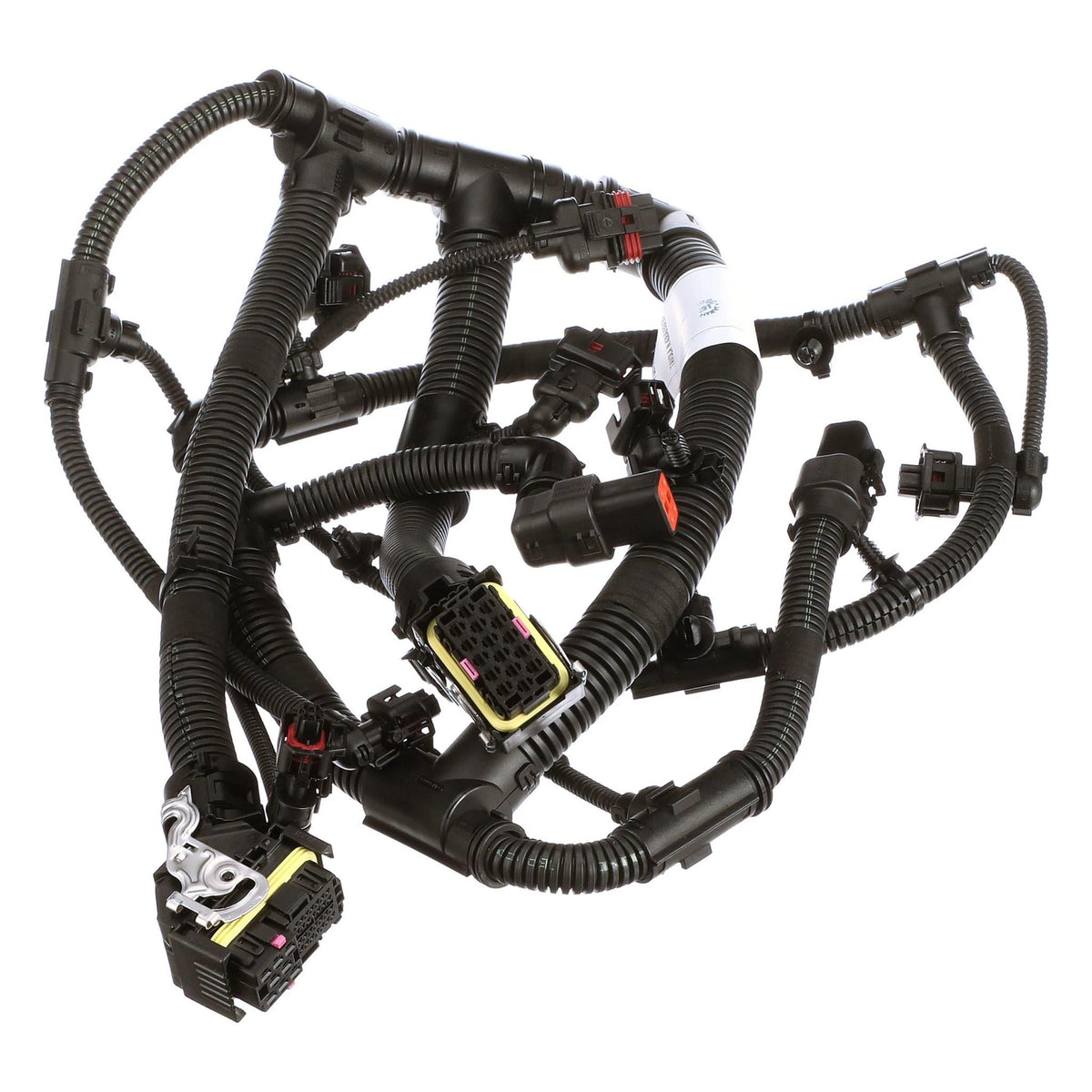

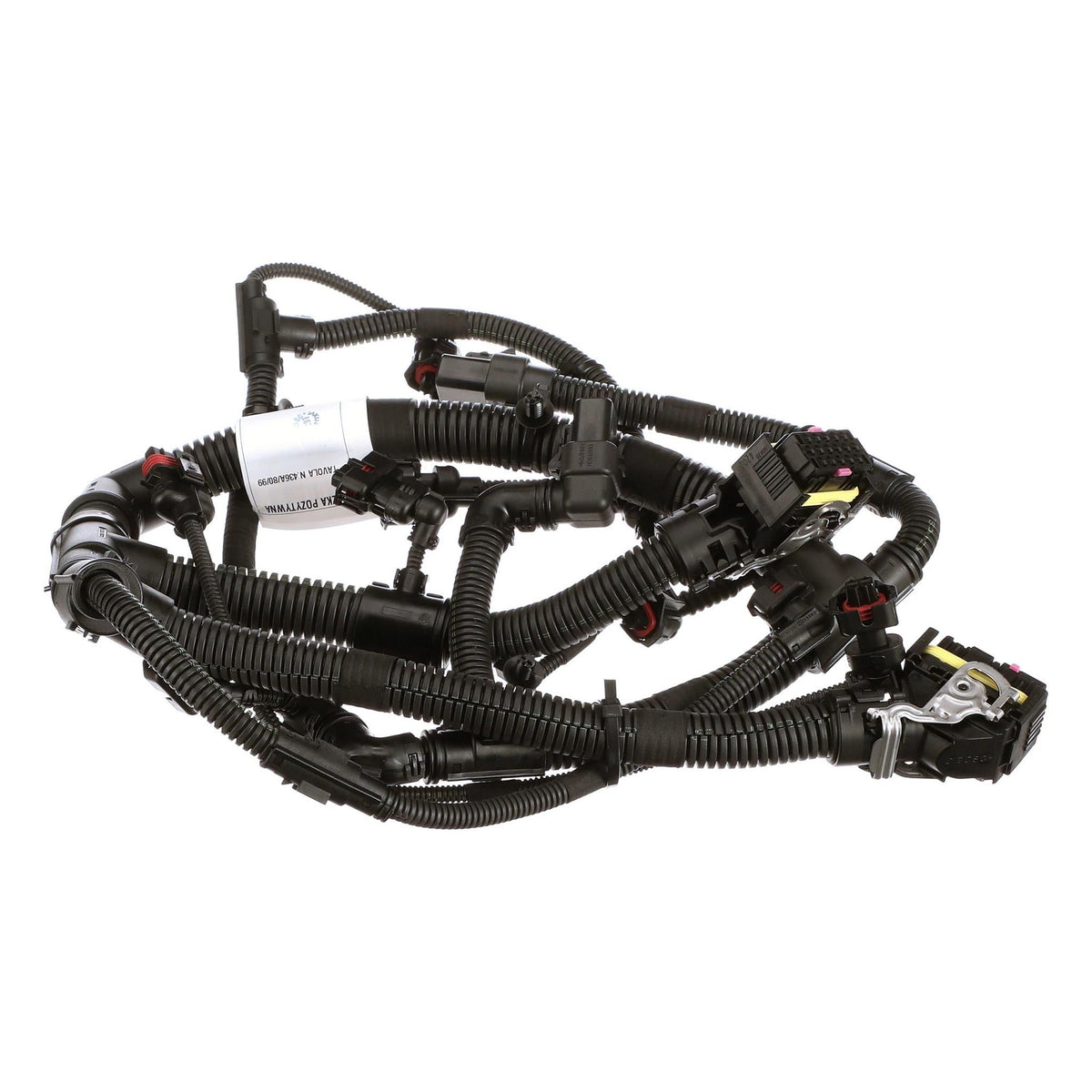

CASE CONSTRUCTION OEM Part No. 504180100

Wiring Harness

Case Construction ·87 Fitments

$374.80 USD · per unit In stock · 2 on hand
Ships fastFrom our warehouse
30-day returnsNo restocking fees
OEM guaranteedDirect from manufacturer
Machine Model Years
WHEEL LOADER TIER 3 (NA) 521E 2008 – 2013
WHEEL LOADER - TIER 4 (NA) 521F 2012 – 2015
WHEEL LOADER - TIER 4B (NA) 521F 2016
WHEEL LOADER - TIER 4B (NA) 521G 2016 – 2022
SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C5040000 580SM 2007 – 2010
SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C508000 580SM 2007 – 2010
BACKHOE LOADER (LIVERY) - TIER 3 NRC 580SN 2016 – 2017
BACKHOE LOADER - TIER 3 NRC 580SN 2015 – 2016
BACKHOE LOADER 2WD - TIER 3 NRC - MY18 580SN 2017 – 2018
BACKHOE LOADER 2WD - TIER 3 NRC - MY19 580SN 2018 – 2022

Enhance your Case Construction equipment’s performance with the Wiring Harness #504180100. Designed for durability and reliability, this essential component ensures seamless electrical connections, optimizing functionality and safety on the job site. Upgrade your machinery today!

Compatible equipment

This part fits WHEEL LOADER TIER 3 (NA), WHEEL LOADER - TIER 4 (NA), WHEEL LOADER - TIER 4B (NA), SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C5040000, SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C508000, BACKHOE LOADER (LIVERY) - TIER 3 NRC, BACKHOE LOADER - TIER 3 NRC, BACKHOE LOADER 2WD - TIER 3 NRC - MY18, BACKHOE LOADER 2WD - TIER 3 NRC - MY19, BACKHOE LOADER 4WD - TIER 3 NRC - MY18, BACKHOE LOADER 4WD - TIER 3 NRC - MY19, LOADER BACKHOE - TIER 3, LOADER BACKHOE - TIER 3 NRC, BACKHOE LOADER (LIVERY) - WIDE TRACK - TIER 3 NRC, BACKHOE LOADER 4WD - WIDE TRACK - TIER 3 NRC - MY18, BACKHOE LOADER 4WD - WIDE TRACK - TIER 3 NRC - MY19, BACKHOE LOADER WIDE TRACK - TIER 3, BACKHOE LOADER WIDE TRACK - TIER 3 NRC, SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C508500, SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N7C431854, LOADER BACKHOE (TIER 3), CRAWLER DOZER TIER 3 (HYDRO), CRAWLER DOZER TIER 3, CRAWLER DOZER - TIER 4A, BACKHOE LOADER TIER 3 (2008), BACKHOE LOADER - TIER 3, LOADER BACKHOE, BACKHOE LOADER - STRAIGHT LOADER ARM (LIVERY) - TIER 3 NRC (LAR), BACKHOE LOADER CENTER PIVOT STRAIGHT LOADER ARM 2WD - TIER 3 - MY19, BACKHOE LOADER CENTER PIVOT STRAIGHT LOADER ARM 4WD (LAR) - TIER 3 - MY19, BACKHOE LOADER - TOOL CARRIER (LIVERY) - TIER 3 NRC (LAR), BACKHOE LOADER CENTER PIVOT TOOL CARRIER 4WD (LAR) - TIER 3 - MY19, BACKHOE LOADER - STRAIGHT LOADER ARM (LIVERY) - TIER 3 NRC, BACKHOE LOADER CENTER PIVOT STRAIGHT LOADER ARM 4WD - TIER 3 - MY19, BACKHOE LOADER - TOOL CARRIER (LIVERY) - TIER 3 NRC, BACKHOE LOADER CENTER PIVOT TOOL CARRIER 4WD - TIER 3 - MY19, ENGINE 504218693 - 87584965, ENGINE 504243740 - 84473214, ENGINE PN 5802263606 - 72KW, ENGINE PN 5802766972 - 72KW, ENGINE 504165557 - 87329242, ENGINE 504203230 - 84473215, ENGINE 504203232 - 84473212, ENGINE PN 5801550765 - 82KW, ENGINE PN 5801550774 - 82KW, ENGINE PN 5801550775 - 82KW, ENGINE PN 5802263609 - 82KW, ENGINE PN 5802766978 - 82KW, ENGINE PN 5802766992 - 82KW, ENGINE 5801451663 - 84371229, ENGINE 5801451664 - 84371230, ENGINE 504375996 - 84371227, ENGINE 5801404986 - 84371228, ENGINE PN 5802078395 - 105KW, ENGINE PN 5802192166 - 105KW, ENGINE - 5801655811 - 47426272, ENGINE PN 5802094292 - 90KW including models 521E, 521F, 521G, 580SM, 580SN, 580SN WT, 590SM, 590SN, 650L, 750L, 850M LT, 850M WT/LGP, B100B, B100BLR, B100BTC, B110 TIER 3, B110B, B110BTC, B115 TIER 3, B115B, B115BTC, B95B, B95BLR, B95BTC, D75B.

Frequently asked questions

What is the part number?

The manufacturer part number is 504180100.

Is this a genuine OEM part?

Yes. Southeastern Equipment stocks OEM and quality aftermarket parts for heavy equipment. Contact us if you need a specific OEM source or aftermarket option.

Will this fit my machine?

See the compatible equipment list above. If your model is not listed, call us with your machine's serial number and we can confirm.

Where does this ship from?

Southeastern Equipment Company ships parts nationwide from our US warehouse. Orders placed before 2 PM ET typically ship same day.

Manufacturer part number
504180100
Internal SKU
IC:504180100
Brand
CASE CONSTRUCTION
Condition
OEM, new
Category
Case Construction
Weight
2.31 lb

Free pickup at any of our 17 branches across Ohio, Indiana, Michigan, and Kentucky. Select your preferred branch at checkout.

30-day no-fault returns. Bought the wrong part? Send it back for a full refund — no restocking fees, no minimums.
