Case Construction OEM Part No. 9824055

Connector Hyd

Case Construction

$26.28 Available
134 verified fitments
Select your machine to check fit
Not sure it’s the right part? Talk to a parts specialist (740) 432-6303Mon–Fri 7:30 AM–5 PM EST
Ships nationwideUPS, USPS & freight
30-day returnsNew, unused parts
OEM guaranteedDirect from manufacturer
Machine Model Years / S/N
SERIES 3 CRAWLER DOZER TIER 3 (NA/EU) 1150K 2006 – 2013
CRAWLER DOZER - TIER 4A 1150M LT 2012 – 2016
CRAWLER DOZER - TIER 4B 1150M LT 2016 – 2022
CRAWLER DOZER - TIER 4B 1150M WT 2016 – 2022
CRAWLER DOZER - TIER 4A 1150M WT/LGP 2012 – 2016
COMPACT WHEEL LOADER STD TC - TIER 4 121F 2014 – 2022
COMPACT WHEEL LOADER STD ZB - TIER 4 121F 2014 – 2022
CASE CRAWLER TRACTOR 1550 1988 – 1994
CASE CRAWLER DOZER (TIER 1) 1650K 2001 – 2007
CRAWLER DOZER TIER 2 1650K 2001 – 2007

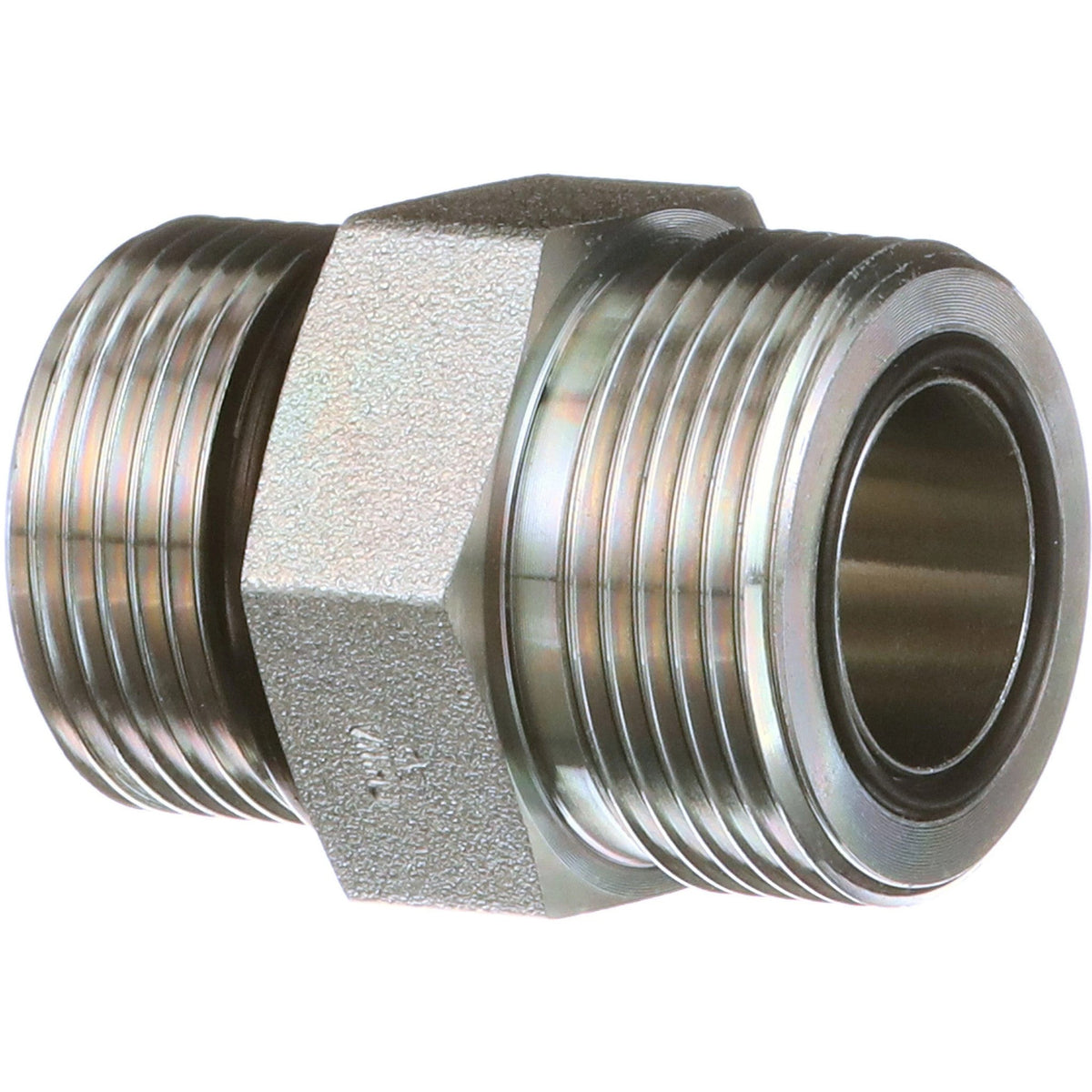

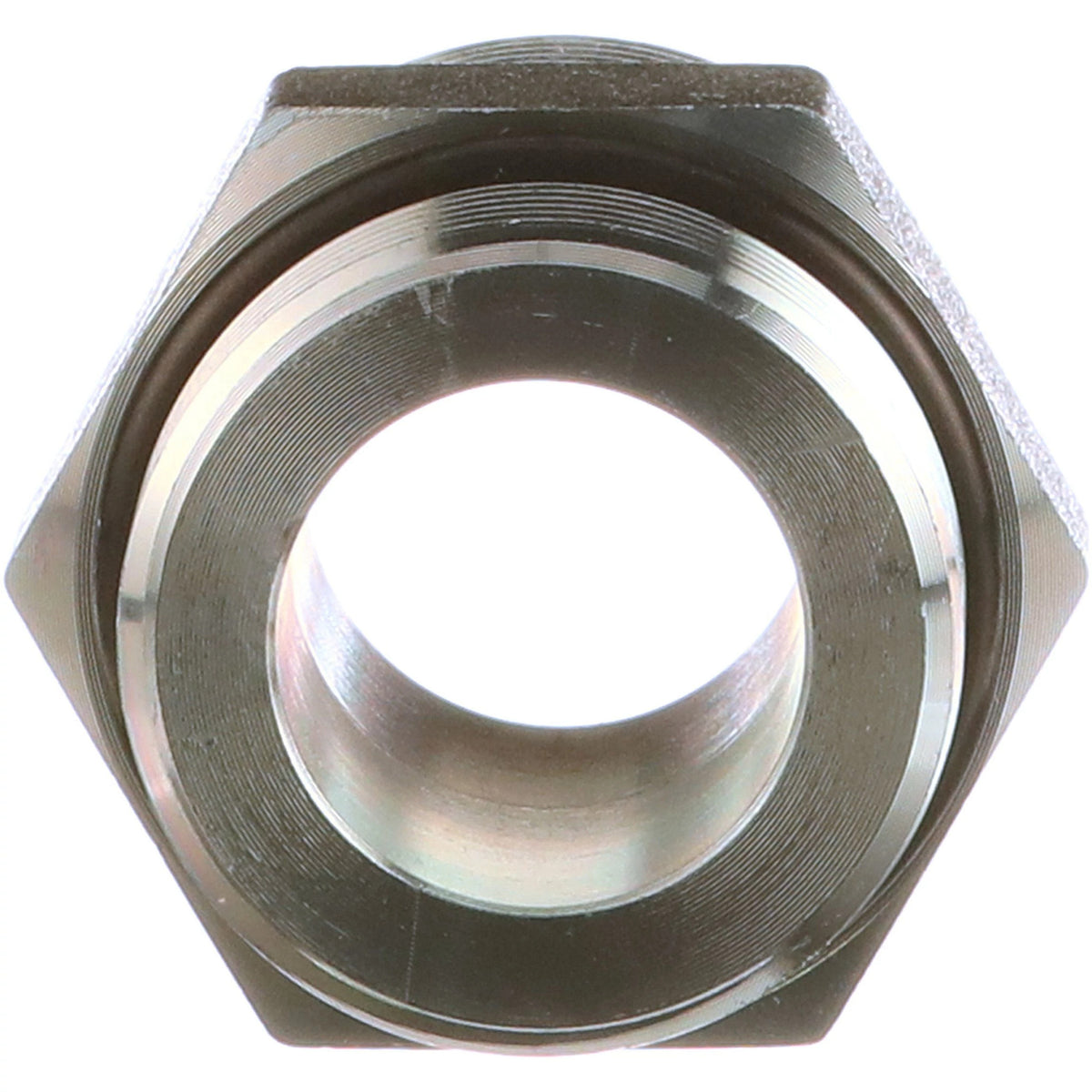

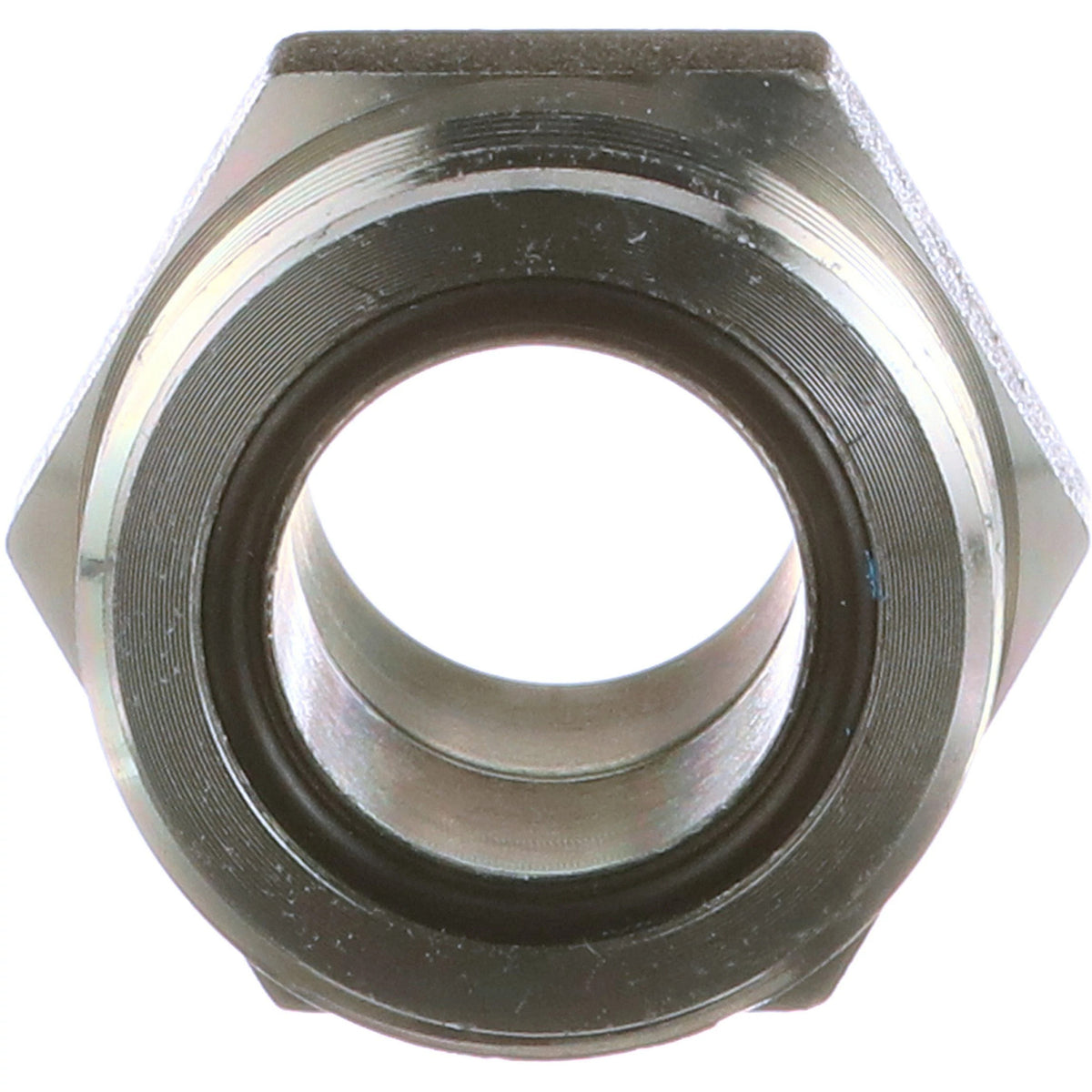

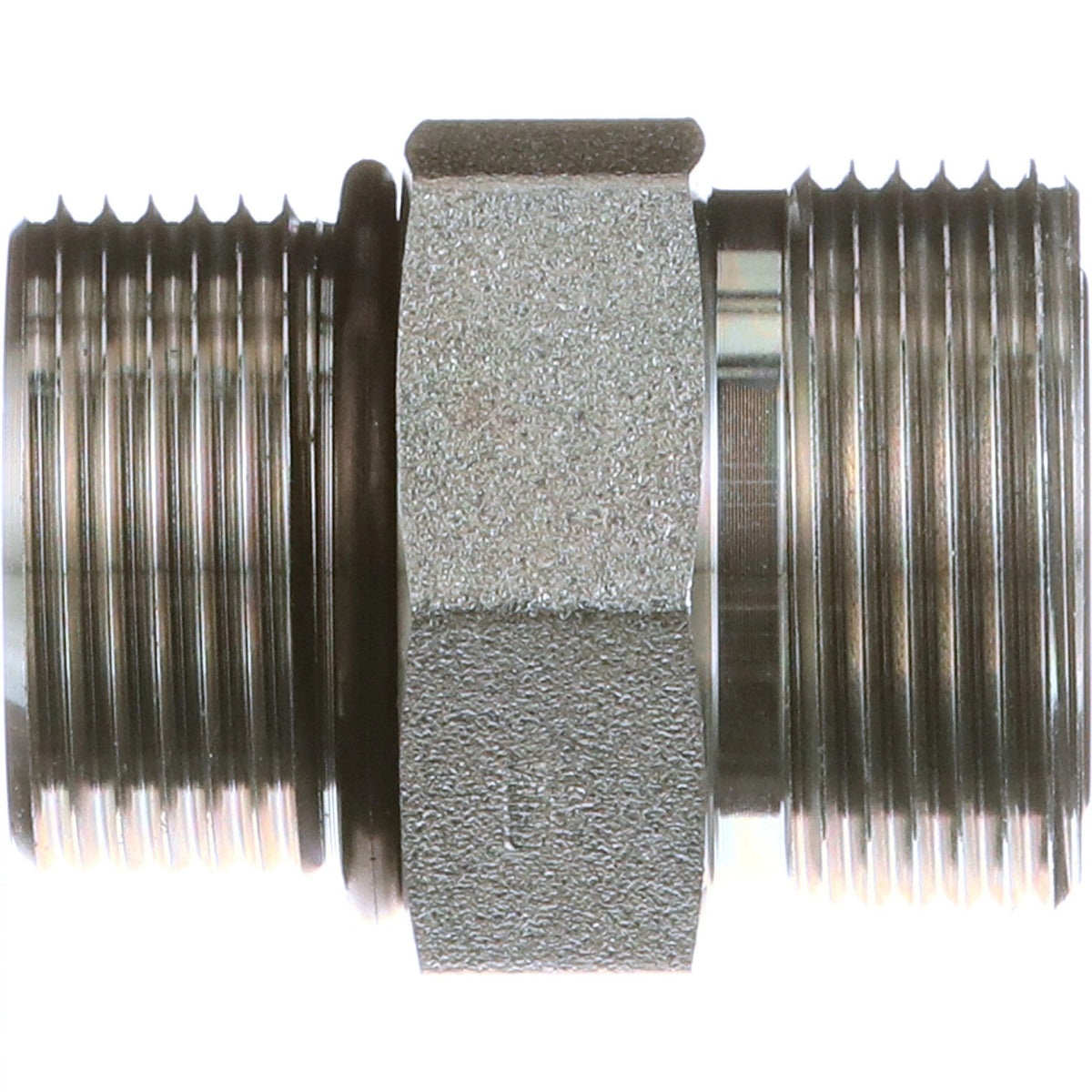

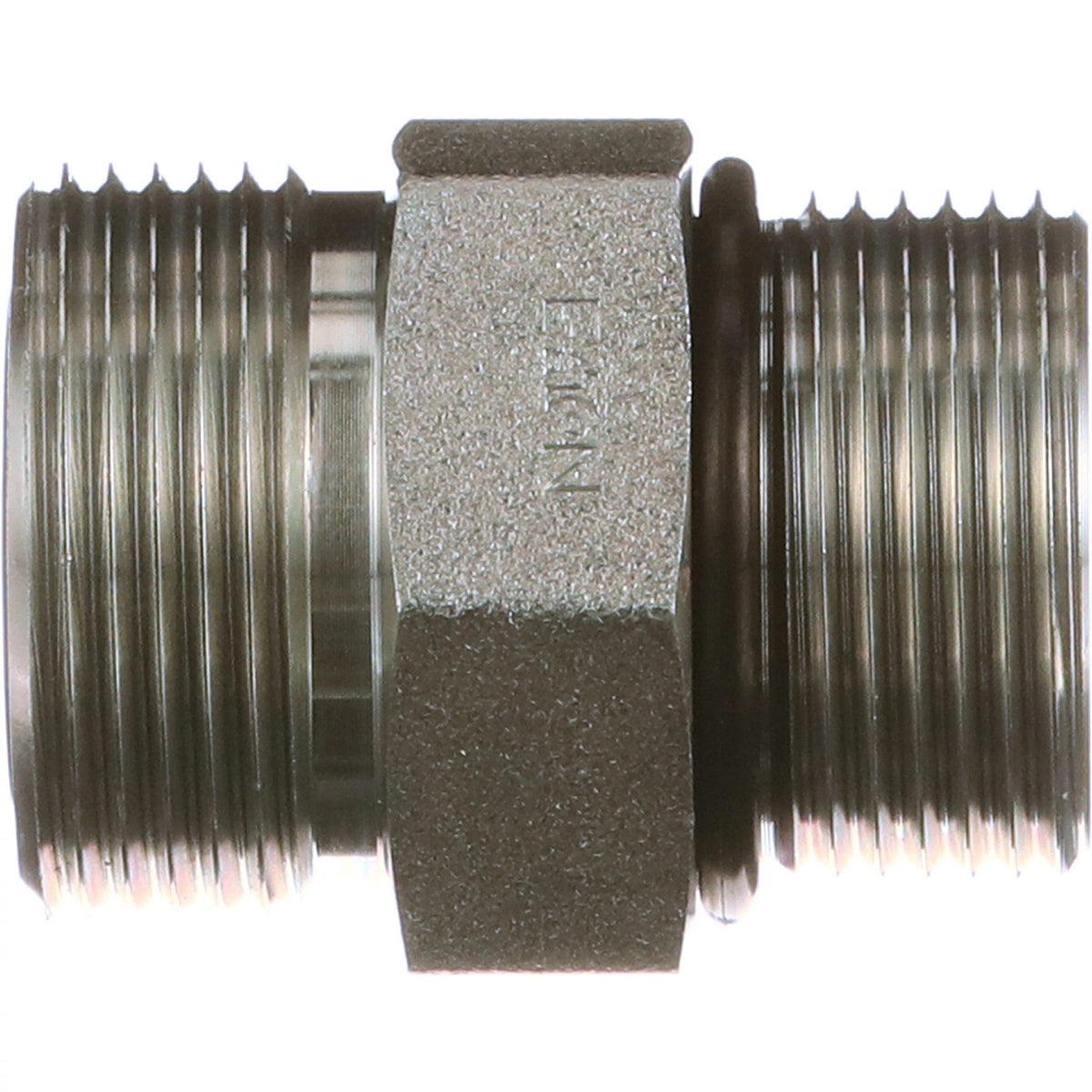

OEM Connector Hyd 1-7/16" - 12 Orfs X 1-5/16" - 12 Orb #9824055 - OEM Wiring and Harness Repair Part for Case Construction Equipment When maintenance teams replace failed parts to correct frayed cable jackets, intermittent power, shorts, and open circuits, this OEM component supports repairs related to worn harnesses and failed electrical leads on heavy equipment. Targeted to service work involving battery cable replacement, machine wiring repair, connector replacement, and OEM harness service on Case equipment.

More Details

Part Number: 9824055

Application: OEM cable or harness replacement for heavy equipment electrical service involving shorts, broken conductors, or connector damage.

Key Features:

  • Designed to replace worn wiring, damaged leads, and failed connection points
  • Supports repair of intermittent power, voltage drop, and no-start electrical issues
  • OEM-style fit for efficient installation during maintenance service

Fits Case Models: Compatible with various Case construction equipment models - verify fitment before ordering

Replaces: Refer to manufacturer cross-reference if applicable

WARNING:For California residents — Cancer and Reproductive Harm. www.P65Warnings.ca.gov

Manufacturer part number
9824055
Brand
Case Construction
Condition
OEM, new
Category
Case Construction
Weight
0.57 lb

Ships nationwide. In-stock parts ordered before 2:30 PM ET ship the same business day. Your exact shipping cost and delivery estimate are calculated at checkout from your ZIP code and the part’s size and weight; oversized and truck-freight items may need extra transit time and freight charges.

Free branch pickup is also available across Ohio, Indiana, Michigan, and Kentucky — just choose it at checkout.

30-day returns. New, unused parts in original packaging may be returned within 30 days. Some items — including electrical, special-order, and direct-from-supplier parts — are non-returnable. See our full return policy.

$26.28
