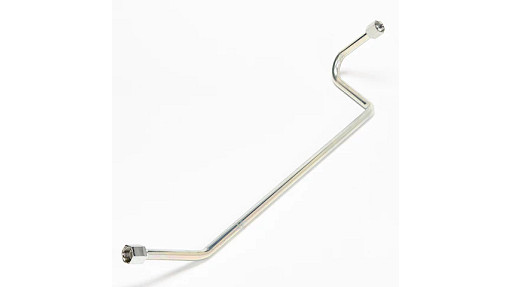

196815A1_MARKETING

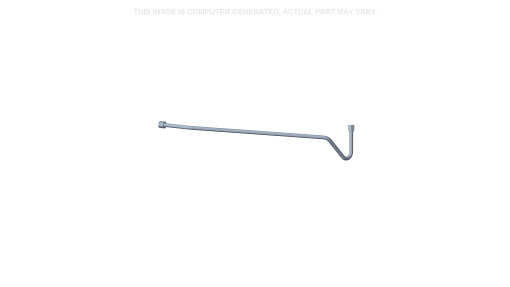

196815A1_FRONT

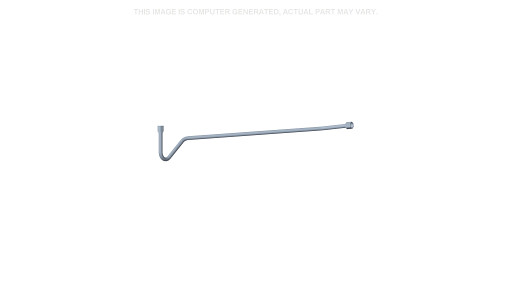

196815A1_BACK

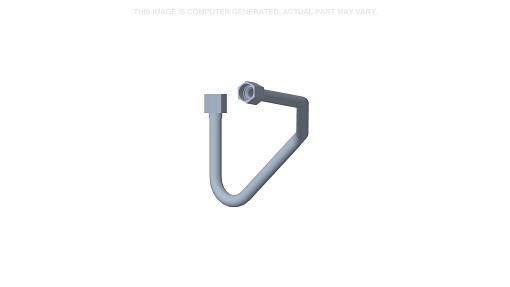

196815A1_LEFT
196815A1_RIGHT
Full Screen

OEM Case Construction Hydraulic Tube #196815A1

196815A1

OEM Case Construction Hydraulic Tube #196815A1 – OEM-Grade Tube for Hydraulic Fluid Transfer

The Hydraulic Tube (#196815A1) provides leak-free transfer of pressurized fluid in your Case machine. Built to OEM dimensions for secure, reliable connections.

More Details

Part Number: 196815A1
Application: Hydraulic tubing assembly

Key Features:

  • OEM diameter and bend radius ensures proper fit
  • Coated for corrosion resistance
  • Designed for high-pressure hydraulic systems

Fits Case Models: Confirm with your model’s hydraulic diagram.

$163.20

10 in stock

Earn 164 Points with purchase!

Favorite
Ships within 1 business day.
Fits:

View Part Fitment
ModelMachine TypeYear
570LXTLOADER LANDSCAPER 1994 - 1997
570MXTLOADER LANDSCAPER 2001 - 2008
570MXTSERIES 3 LOADER LANDSCAPER TIER 3 - ASN N8C510600 2008 - 2012
570N EPLOADER LANDSCAPER - LIVERY - TIER 4B 2016 - 2022
570N EPLOADER LANDSCAPER - TIER 4B 2014 - 2016
570NXTLOADER LANDSCAPER - TIER 4A ASN NCC570600 2012 - 2014
580LLOADER BACKHOE (NORTH AMERICA) 1997 - 1997
580LSERIES 2 LOADER BACKHOE - ASN JJG0239360 1997 - 2000
580MLOADER BACKHOE (NA) - ASN JJG0285001 2000 - 2004
580MSERIES 2 LOADER BACKHOE TIER 2 (NA) - ASN N4C303000 2004 - 2008
580MSERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C500000 2008 - 2010
580N EPBACKHOE LOADER (LIVERY) - TIER 4B 2016 - 2017
580N EPBACKHOE LOADER - TIER 4B 2015 - 2016
580N EPBACKHOE LOADER 2WD - TIER 4B - MY18 2017 - 2018
580N EPBACKHOE LOADER 2WD - TIER 4B - MY19 2018 - 2022
580N EPBACKHOE LOADER 4WD - TIER 4B - MY18 2017 - 2018
580N EPBACKHOE LOADER 4WD - TIER 4B - MY19 2018 - 2022
580SLLOADER BACKHOE - BSN JJG0239361 1998 - 2000
580SLSERIES 2 LOADER BACKHOE - ASN JJG0239360 1994 - 2000
580SMLOADER BACKHOE (NORTH AMERICA) 1999 - 2004
580SMSERIES 2 LOADER BACKHOE TIER 2 (NA) - ASN N4C304000 2004 - 2008
580SMSERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C5040000 2007 - 2010
580SMSERIES 2 LOADER BACKHOE TIER 2 (NA) - ASN N4C307000 2004 - 2008
580SMSERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C508000 2007 - 2010
590LLOADER BACKHOE 1998 - 1998
590SLLOADER BACKHOE 1995 - 1998
590SLSERIES 2 LOADER BACKHOE - ASN JJG0210575 1998 - 2000
590SMLOADER BACKHOE (NORTH AMERICA) 2001 - 2004
590SMSERIES 2 LOADER BACKHOE TIER 2 (NA) - ASN N4C309000 2003 - 2008
590SMSERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C508500 2006 - 2010
590SMSERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N7C431854 2007 - 2010
LV80TRACTOR LOADER (REVISED 05/2005) 2002 - 2007
U80TRACTOR LOADER - NA 2006 - 2008
U80BTRACTOR LOADER TIER 3 (NA) 2008 - 2012
U80CLOADER LANDSCAPER - LIVERY - TIER 4B 2016 - 2022
U80CLOADER LANDSCAPER - TIER 4B 2014 - 2016
U80CTRACTOR LOADER - TIER 4A 2012 - 2014

Package Qty:
1
SKU: IC:196815A1 Categories: , Tags: , ,
